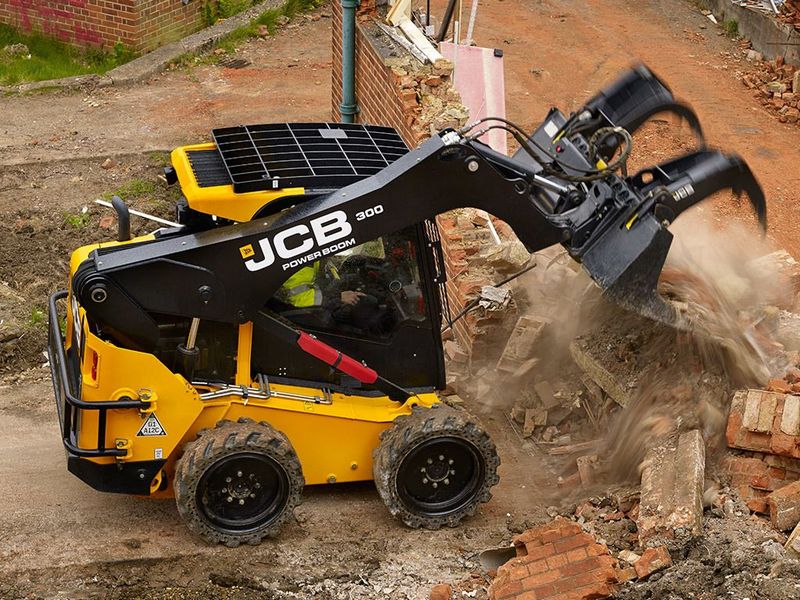

JCB 300
Browse All JCB or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 12.41 ft in (3780 mm) |
| Width Over Tires | 5.91 ft in (1800 mm) |
| Ground Clearance | 9.85 in (250 mm) |
| Height To Top Of Cab | 6.86 ft in (2090 mm) |
| Wheelbase | 4.11 ft in (1250 mm) |
| Clearance At Max Lift And Dump | 8.08 ft in (2460 mm) |
| Reach At Max Lift And Dump | 35.44 in (900 mm) |
| Turning Radius From Center - Inc Bucket | 86.62 in (2200 mm) |
| Turning Radius From Center - Machine Rear | 69.3 in (1760 mm) |
| Loadover Height | 9514.44 ft in (2900 m) |
| Dig Depth | 393.71 in (10000 mm) |
| Dump Angle | 42 degrees |
| Dump Height | 7.55 ft in (2300 mm) |
| Angle Of Departure | 29 degrees |
| Pin Height | 10498.69 ft in (3200 m) |
| Rollback - Ground Level | 30 degrees |
Tyres
| Standard | 12 x 16.5 - 10 PR Xtra Wall Off Road |
Engine
| Emissions Certification | EPA-T4F (EU St3B) |
| Fuel | Diesel |
| Starter Motor | 4.2 KW |
| Battery | 12 V |
| Engine Oil Service Interval | 500 hours |
| Engine Make | 2257 |
| Engine Model | EcoMAX TCAE-55 |
| Gross Power | 74 hp (55.2 kw) |
| Cooling System | Liquid |
| Power Measured @ | 2400 rpm |
| Max Torque | 295.1 lb ft (400 Nm) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Turbo |
| Displacement | 268 cu in (4.4 L) |
Operational
| Operational Weight | 9288.1 lb (4213 kg) |
| Fuel Capacity | 27.3 gal (103 L) |
| Cooling System Fluid Capacity | 4.1 gal (15.5 L) |
| Engine Oil Fluid Capacity | 4 gal (15 L) |
| Hydraulic System Fluid Capacity | 14.6 gal (55 L) |
| Max Speed | 12.4 mph (20 km/h) |
| Chain Box Fluid Capacity - Each Side | 6.1 gal (23 L) |
| Operating Speed | 6.8 mph (11 km/h) |
| Tire Size | 12 x 16.5 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Transmission
| Model | Two Speed |
| Travel Speed | 12.5 mph (20 km/h) |
Loader
| Loader Lift Capacity With Bucket | 6056.1 lb (2747 kg) |
| Breakout Force | 6543.4 lb (2968 kg) |
| Operating Load Rating | 3000 lb (1360.8 kg) |
| Tipping Angle | 6369.2 degrees |
| Bucket Capacity | 0.6 yd3 (0.5 m3) |
| Bucket Width | 74.9 in (1900 mm) |
Hydraulic
| Pump Flow Capacity | 23.8 gal/min (90 L/min) |
| Relief Valve Pressure | 3335 psi (22994 kPa) |
