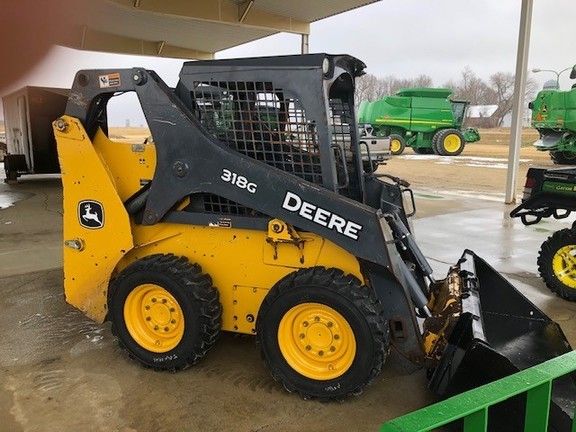

John Deere 318G Skid Steer _JD
Browse All John Deere or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.63 ft in (3240 mm) |
| Ground Clearance | 7.09 in (180 mm) |
| Wheelbase | 3.45 ft in (1050 mm) |
| Length - No Bucket | 103.55 in (2630 mm) |
| Length - With Bucket | 127.56 in (3240 mm) |
| Overall Height | 6.44 ft in (1960 mm) |
| Rear Departure Angle | 22.3 |
| Reach - Max Dump Height | 33.86 in (860 mm) |
| Rollback - Ground Level | 30 - |
| Dump Angle | 42 |
| Width - No Bucket | 63 in (1600 mm) |
| Dump Height - Maximum | 94.49 in (2400 mm) |
| Height To Hinge Pin | 120.08 in (3050 mm) |
Driveline
| Engine Model | 4TNV86CHT |
| Displacement | 128.2 cu in (2.1 L) |
| Engine Manufacturer | Yanmar |
| Emission Rating | Tier 4 |
| Rated Engine Speed | 2600 rpm |
| Sae Net Power | 61 hp (45.5 kw) |
| Sae Gross Power | 65 hp (48.5 kw) |
| Max. Gross Torque | 207 (153) |
| Drive Chain Rating [Ansi] | 80 - HD |
| Tire Size - Standard | 10 x 16.5 |
| Aspiration | Turbo |
Capacities
| Fuel Tank - Diesel | 18.8 gal (71 L) |
Description
| Lift Geometry | Vertical |
Performance
| Rated Operating Capacity - Optional Counterweight | 2096.6 lb (951 kg) |
| Tipping Capacity (Sae) | 3893.4 lb (1766 kg) |
| Axle Torque - Maximum | 6459 (4764) |
| Speed - Maximum | 6.9 mph (11.2 km/h) |
| Breakout - Lift | 4990.8 lb (22.2 kN) |
| Breakout - Bucket | 5980 lb (26.6 kN) |
| Hydraulic Power | 31 hp (23.2 kw) |
| Pump Output | 15.6 gal/min (59 L/min) |
| System Pressure | 3450 psi (23786.9 kPa) |
| Speed - Maximum Option | 10.1 mph (16.3 km/h) |
| Rated Operating Capacity | 1946.7 lb (883 kg) |
Weights
| Operating Weight | 6481.6 lb (2940 kg) |
