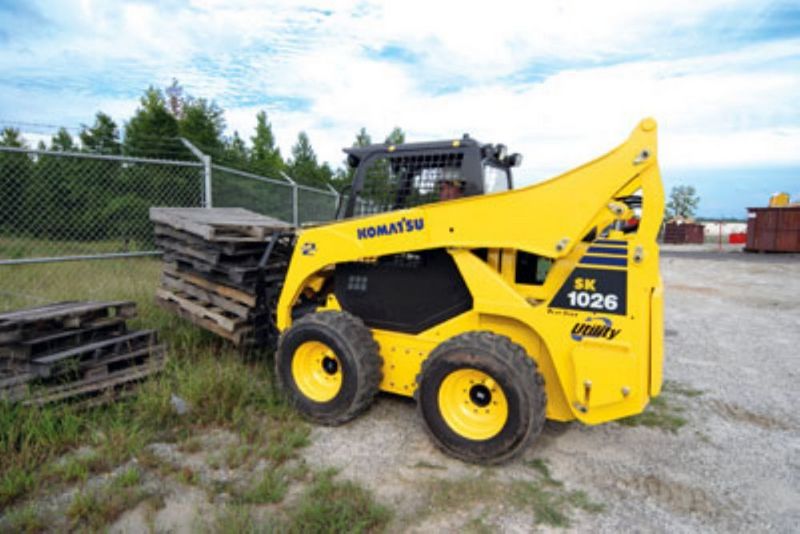

Komatsu SK1026-5
Browse All Komatsu or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 12.08 ft in (3680.46 mm) |
| Width Over Tires | 5.68 ft in (1730 mm) |
| Ground Clearance | 9.34 in (237 mm) |
| Height To Top Of Cab | 6.77 ft in (2062 mm) |
| Wheelbase | 3.82 ft in (1162 mm) |
| Clearance At Max Lift And Dump | 8.11 ft in (2470 mm) |
| Reach At Max Lift And Dump | 36.86 in (936 mm) |
| Turning Radius From Center - Machine Rear | 65.36 in (1660 mm) |
| Turning Radius From Center - Inc Bucket | 84.65 in (2150 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 4D98E-2NFD |
| Net Power | 84 hp (62.7 kw) |
| Power Measured @ | 2500 rpm |
| Aspiration | natural |
| Displacement | 207.5 cu in (3.4 L) |
Operational
| Operational Weight | 7572.9 lb (3435 kg) |
| Fuel Capacity | 19.3 gal (73 L) |
| Cooling System Fluid Capacity | 2.2 gal (8 L) |
| Engine Oil Fluid Capacity | 3.4 gal (12.5 L) |
| Max Speed | 10 mph (16 km/h) |
| Hydraulic System Fluid Capacity | 13.3 gal (50 L) |
| Chain Box Fluid Capacity - Each Side | 8.5 gal (32 L) |
| Operating Speed | 6.3 mph (10 km/h) |
| Tire Size | 12-16.5 10PR |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
Loader
| Breakout Force | 5401.4 lb (2450 kg) |
| Operating Load Rating | 2656.6 lb (1205 kg) |
| Tipping Angle | 2855 degrees |
| Bucket Capacity | 0.7 yd3 (0.5 m3) |
Hydraulic
| Pump Type | Komatsu closed load sensing system |
| Pump Flow Capacity | 34.4 gal/min (130 L/min) |
| Relief Valve Pressure | 3045.8 psi (21000 kPa) |
