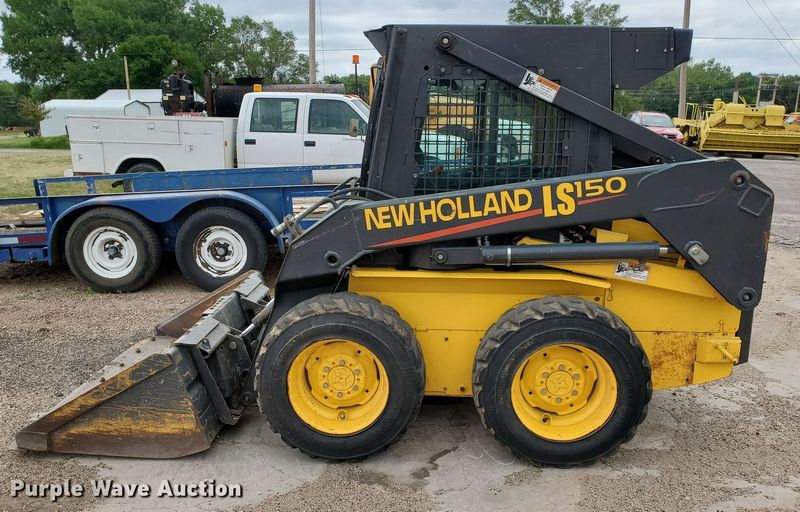

New Holland LS150
Browse All New Holland or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 9.98 ft in (3040 mm) |
| Width Over Tires | 4.11 ft in (1250 mm) |
| Ground Clearance | 8.27 in (210 mm) |
| Height To Top Of Cab | 6.11 ft in (1860 mm) |
| Wheelbase | 3.12 ft in (950 mm) |
| Clearance At Max Lift And Dump | 7.62 ft in (2320 mm) |
| Reach At Max Lift And Dump | 25.2 in (640 mm) |
| Turning Radius From Center - Machine Rear | 56.3 in (1430 mm) |
| Turning Radius From Center - Inc Bucket | 70.48 in (1790 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2249 |
| Engine Model | N843H |
| Gross Power | 38 hp (28.4 kw) |
| Net Power | 36 hp (26.9 kw) |
| Power Measured @ | 3200 rpm |
| Displacement | 91.5 cu in (1.5 L) |
Operational
| Operational Weight | 4501.9 lb (2042 kg) |
| Fuel Capacity | 8.8 gal (33.1 L) |
| Cooling System Fluid Capacity | 2.5 gal (9.3 L) |
| Engine Oil Fluid Capacity | 1.5 gal (5.5 L) |
| Max Speed | 7.6 mph (12.1 km/h) |
| Hydraulic System Fluid Capacity | 5 gal (18.9 L) |
| Chain Box Fluid Capacity - Each Side | 1.6 gal (5.7 L) |
| Tire Size | 10x16.5 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
Loader
| Breakout Force | 3501 lb (1588 kg) |
| Operating Load Rating | 1349.3 lb (612 kg) |
| Tipping Angle | 2700.7 degrees |
| Bucket Capacity | 0.5 yd3 (0.4 m3) |
Hydraulic
| Pump Type | New Holland double acting |
| Pump Flow Capacity | 12 gal/min (45.5 L/min) |
| Relief Valve Pressure | 2600 psi (17926.4 kPa) |
