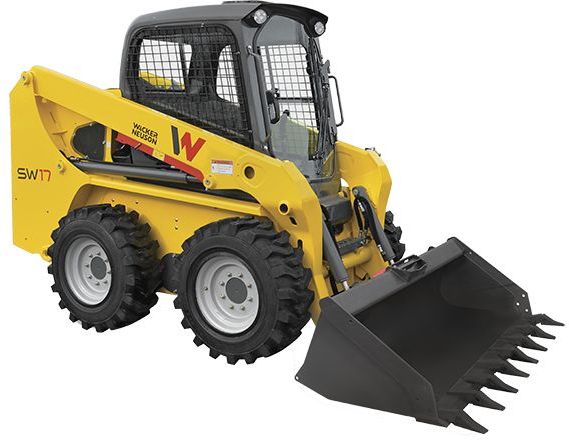

Wacker Neuson SW17
Browse All Wacker Neuson or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.25 ft in (3426 mm) |
| Width Over Tires | 5.5 ft in (1674 mm) |
| Ground Clearance | 7.6 in (193 mm) |
| Height To Top Of Cab | 6.8 ft in (2070 mm) |
| Wheelbase | 3.63 ft in (1105 mm) |
| Length W/O Bucket | 8.89 ft in (2708 mm) |
| Clearance At Max Lift And Dump | 7.55 ft in (2301 mm) |
| Reach At Max Lift And Dump | 28.12 in (714 mm) |
Engine
| Engine Make | Kohler |
| Engine Model | KDI 2504 TCR |
| Gross Power | 74 hp (55.2 kw) |
| Power Measured @ | 2750 rpm |
| Displacement | 151.5 cu in (2.5 L) |
Operational
| Operational Weight | 6245 lb (2832.7 kg) |
| Fuel Capacity | 30 gal (113.6 L) |
| Hydraulic System Fluid Capacity | 2.9 gal (11 L) |
| Max Speed | 12 mph (19.4 km/h) |
| Tire Size | 10 x 16.5 |
Loader
| Bucket Breakout Force (Iso 14397) | 5300 lb (2404.1 kg) |
| Boom Breakout Force | 5000 lb (22.3 kN) |
Hydraulic
| Pump Flow Capacity | 20 gal/min (75.8 L/min) |
| Relief Valve Pressure | 3500 psi (24131.7 kPa) |
