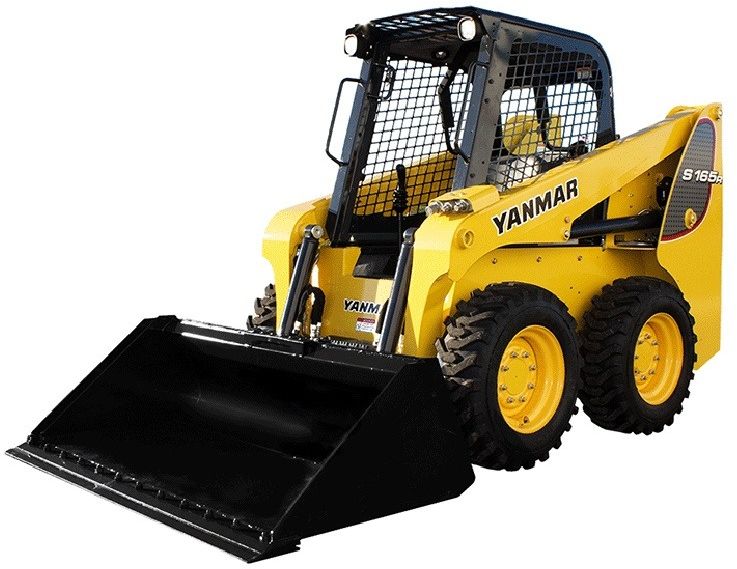

Yanmar S165R-1

Browse All Yanmar or Skid Steer Loader Models

Contents:

Dimensions

Length With Bucket	10.18 ft in (3101 mm)
Ground Clearance	6.3 in (160 mm)
Height To Top Of Cab	12.72 ft in (3876 mm)
Wheelbase	3.25 ft in (988 mm)
Length W/O Bucket	7.83 ft in (2385 mm)
Reach At Max Lift And Dump	32.8 in (833 mm)
Hinge Pin Height - Fully Raised	119.02 in (3023 mm)
Dump Angle	38 degrees
Front Departure Angle	21 degrees
Overall Height, Rops Cab	76.7 in (1948 mm)
Overall Width	5.27 ft in (1605 mm)
Rollback - Ground Level	28 degrees
Ground Height	35.6 in (904 mm)
Dump Height	7.81 ft in (2380 mm)

Rated Operating Capacity

1649.1 lb (748 kg)

With Optional Counterweight

1799 lb (816 kg)

Tipping Angle	3300.4 degrees
Bucket Width	61.5 in (1562 mm)
