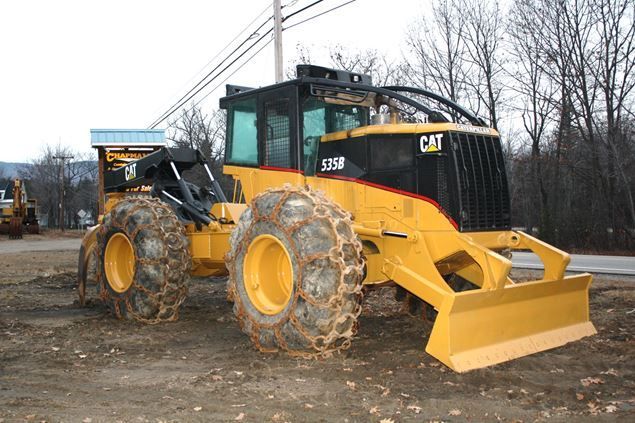

Caterpillar 535C Grapple
Browse All Caterpillar or Skidder Models
Contents:
Dimensions
| Overall Length | 25.02 ft in (7626 mm) |
| Overall Width | 11.15 ft in (3398 mm) |
| Height To Top Of Cab | 10.45 ft in (3184 mm) |
| Ground Clearance | 1.75 ft in (533 mm) |
| Wheelbase | 11.6 ft in (3534 mm) |
| Max Height Of Boom | 13.47 ft in (4103 mm) |
| Tong Opening At Tips | 10.25 in (3124 mm) |
| Max Line Speed | 132 ft/min (40.24 m/min) |
| Max Blade Height | 54.38 in (1381 mm) |
| Cable Width | 0.75 in (19 mm) |
| Drum Capacity At Cable Width | 154 ft in (46.94 m) |
| Drum Diameter | 0.75 in (19.05 mm) |
| Grapple Capacity - Tongs Tip To Tip | 14.43 ft2 (1.34 m2) |
| Blade Width | 10.3 ft in (3138 mm) |
| Max Line Pull - Bare Drum | 39342 lb (175.01 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | C7 Acert |
| Gross Power | 218 hp (162.6 kw) |
| Net Power | 204 hp (152.2 kw) |
| Power Measured @ | 1800 rpm |
| Peak Torque | 705.2 lb ft (956 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 439 cu in (7.2 L) |
Operational
| Operating Weight | 39780 lb (18044 kg) |
| Fuel Capacity | 83.2 gal (315 L) |
| Cooling System Fluid Capacity | 15 gal (56.8 L) |
| Engine Oil Capacity | 7.1 gal (26.9 L) |
| Front Diff Fluid Capacity | 13.7 gal (51.9 L) |
| Rear Diff Fluid Capacity | 13.7 gal (51.9 L) |
| Transmission Fluid Capacity | 14.2 gal (53.8 L) |
| Hydraulic System Fluid Capacity | 29.6 gal (112.1 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Tire Size | 30.5 x 32 |
Transmission
| Transmission Type | Countershaft powershift |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 17.1 mph (27.6 km/h) |
| Max Speed - Reverse | 11.6 mph (18.7 km/h) |
Hydraulic
| Pump Type | Piston pump, variable displacement |
| Pump Flow | 46 gal/min (174.2 L/min) |
| Relief Valve Pressure | 3045 psi (20994.6 kPa) |
