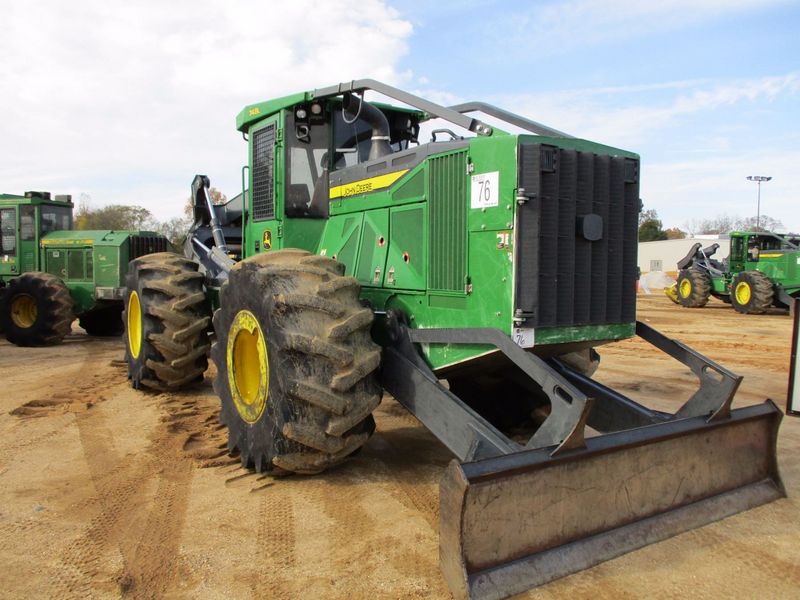

John Deere 748L
Browse All John Deere or Skidder Models
Contents:
Dimensions
| Overall Length | 330.08 in (8384 mm) |
| Overall Width | 127.5 in (3238.5 mm) |
| Ground Clearance | 21.9 in (556.26 mm) |
| Wheelbase | 154.53 in (3925 mm) |
| Tong Opening At Tips | 128 in (3251.2 mm) |
| Steering Articulation Angle | 45 degrees |
| Height Over Cab | 132.5 ft in (3365.5 mm) |
| Dozer Blade Height | 27.08 in (687.6 mm) |
| Dozer Blade Width | 116.63 in (2962.4 mm) |
| Enclosure Area | 19.06 ft in (1.77 m) |
| Dozer Blade - Dig Depth | 14.14 in (359 mm) |
Driveline
| Engine Model | PowerTech PSS 6.8L |
| Displacement | 415 cu in (6.8 L) |
| Engine Manufacturer | John Deere |
| Engine Output | 262.9 hp (196 kw) |
| Engine Torque | 841.6 lb ft (1141 Nm) |
| Transmission | Continuous Variable Transmission |
| Planetaries | Inboard |
| Front Axle | Inboard planetary |
| Rear Axle | Inboard planetary |
| Service Brake Type | Wet discs |
Capacities
| Fuel Tank - Diesel | 103.6 gal (391.8 L) |
| Hydraulic Tank | 32.7 gal (123.6 L) |
| Alternator Output | 150 amps |
Description
| Standard Arch Function | Dual |
Performance
| Travel Speed | 15.4 mph (24.8 km/h) |
| System Voltage | 24 V |
| Pump | Axial Piston |
| Oscillation Point | Front Axle |
| Oscillation Angle | 15 degrees |
| Rated Line Pull | 182.3 kN |
| Rated Line Speed | 46 ft/min (14 m/min) |
Transmission
| System Voltage | 24 V |
Weights
| Operating Weight | 43459.8 lb (19713 kg) |
