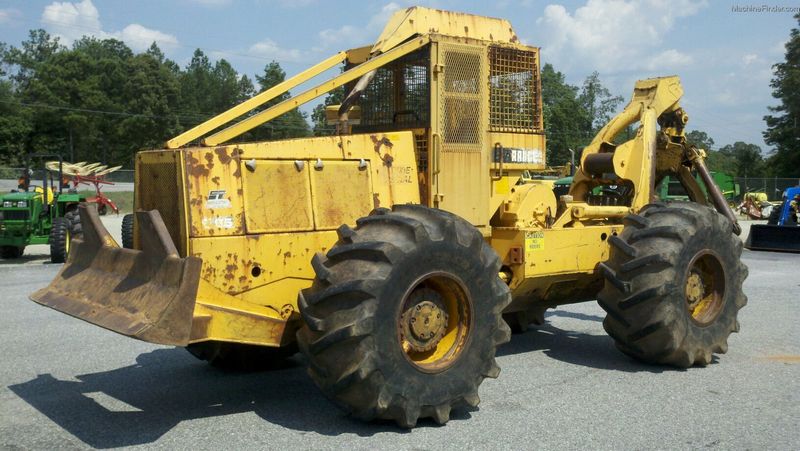

Ranger F66G
Contents:
Dimensions
| Overall Width | 78.38 ft in (23890 mm) |
| Height To Top Of Cab | 9.55 ft in (2908 mm) |
| Ground Clearance | 1.48 ft in (450 mm) |
| Wheelbase | 10.71 ft in (3264 mm) |
| Max Height Of Boom | 10.85 ft in (3307 mm) |
| Reach Of Grapple At Ground Level | 7.66 ft in (2332 mm) |
| Tong Opening At Tips | 7.17 ft in (2184 mm) |
| Blade Width | 7.01 ft in (2134 mm) |
| Max Line Pull - Bare Drum | 31090 lb (138.3 kN) |
| Max Line Speed | 407.81 ft/min (124.3 m/min) |
| Drum Capacity At Cable Width | 314.97 ft in (96 m) |
| Grapple Capacity - Tongs Tip To Tip | 8.08 ft2 (0.75 m2) |
| Cable Width | 0.6 in (15 mm) |
| Max Blade Height | 23.51 in (597 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6BT5.9 |
| Gross Power | 152 hp (113.4 kw) |
| Net Power | 137 hp (102.2 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 425 lb ft (576.3 Nm) |
| Displacement | 359 cu in (5.9 L) |
Operational
| Operating Weight | 23890 lb (10836.4 kg) |
| Fuel Capacity | 48 gal (181.7 L) |
| Cooling System Fluid Capacity | 10 gal (37.9 L) |
| Engine Oil Capacity | 3.6 gal (13.7 L) |
| Hydraulic System Fluid Capacity | 14 gal (53 L) |
| Operational Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Tire Size | 23.1x26 |
Transmission
| Transmission Type | Clark R28320 |
| Number Of Forward Gears | 3 |
| Max Speed - Forward | 15.8 mph (25.5 km/h) |
Hydraulic
| Pump Type | gear type |
| Pump Flow | 36.8 gal/min (139 L/min) |
| Relief Valve Pressure | 2200 psi (15168 kPa) |
