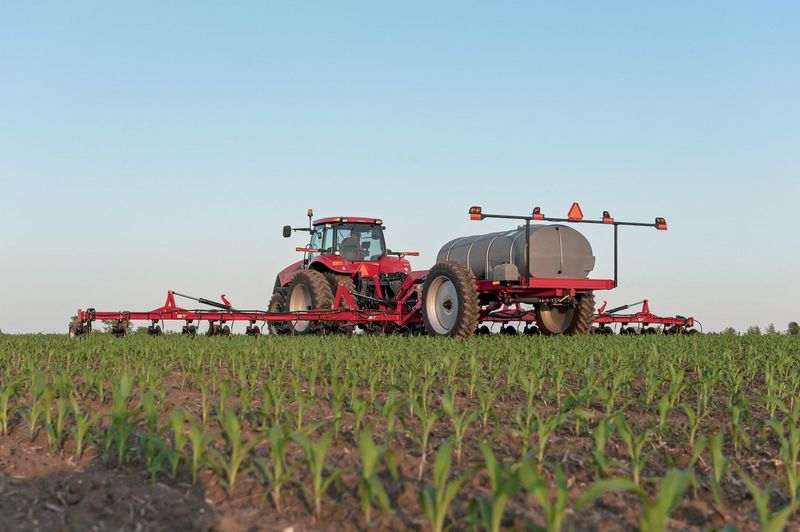

Case IH NUTRI-PLACER 920, 1650 GALLON
Contents:
Dimensions
| Transport Width | 16.74 ft in (5100 mm) |
| Transport Height | 13.46 ft in (4100 mm) |
| Coulter Diameter | 20 in (508 mm) |
Configuration
| Transport Folding Method | Hydraulic X-fold |
| Row Spacings | 30 in (762 mm) |
| Fertilizer Material | Liquid only |
| Working Width | 62.7 ft in (19.1 m) |
| Number Of Rows | 17, 23 or 25 coulters |
| Liquid Fertilizer Tank Capacity | 1650.1 gal (6246 L) |
Drawbar
| Description | Drawbar category 4 |
Frame
| Toolbar Rigid Or Flexible | Flex, unlimited up, -7 deg. down |
Engine
| Engine Make | Case IH |
| Engine Model | Nutri-Placer 920, 1,650 Gallon |
| Power | 199.9 hp (149 kw) |
Weights
| Weight | 14830.5 lb (6727 kg) |
Tires
| Main Frame Tire Size | 420/80 R46 standard 380/90 R46 optional |
| Wing Frame Tire Size | 20.5x8 |
Hydraulic System
| Number Of Remote Control Valves | 4 |
