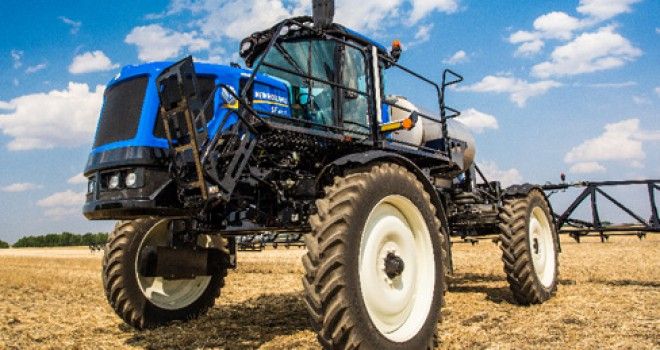

New Holland SP.260R
Browse All New Holland or Sprayer Models
Contents:
Boom
| Boom (In Line Filters) | Optional 50 or 100 mesh |
| Boom Pipes | 25 mm stainless steel |
| Breakaway | On the secondary boom wing |
| Flow Control | RFM 60 / Optional RFM 100 |
| Height Adjustment | 508 to 2032 mm |
| Mono Boom Type | Structural steel construction |
| Nozzle Body Center | 381 or 508 mm |
| Nozzle Body Options | 3 way, 5 way, or 3+1 |
| Primary Strainer | 50 or optional 80 mesh y-strainer |
| Sections | 5 or 10 section |
| Truss Boom Type | Tubular truss construction |
Liquid System
| Polyethylene Tank | 3785 or 4543 L |
| Tank Agitation Ss | Sparge tube |
| Tank Agitation Poly | Twinjet nozzles |
| Rinse System | Manual or electric |
| Chemical Eductor | Optional 3.6 gal. SS with/ rinse system |
| Clean Water / Hand Wash | 3 gal (11.4 L) |
| Stainless Steel Tank | 999.9 gal (3785 L) |
| Rinse Tank Capacity | 100.2 gal (379 L) |
| Fast Fill | 50.8 mm standard and 76.2 optional |
Rate Control System
| Boom Height Control | Optional Raven Ultraglide / Ultrasonic or PowerGlide / Touch wheel system |
| Make And Model | IntelliView™ IV, Viper® 4+ |
| Gps | Optional (IntelliSteer kit) |
Engine
| Make / Displacement Liter | Cummins QSB / 6.7 / Tier 4B |
| Def Tank Capacity | 15.1 gal (56.8 L) |
| Fuel Tank Capacity | 130 gal (492 L) |
| Rated Power | 240.1 hp (179 kw) |
| Power Bulge | 269.6 hp (201 kw) |
Drive Train
| Transmission / Type | Automatic / Allison / RDS 2500 |
| Speed Ranges | 5 Speed automatic |
| Parking Brakes | Spring applied hydraulic release |
| Wheel Drive | 2 WD |
| Differential / Lock System | JCB with ‘on the go’ hydraulic differential lock up |
| Angle Drive Shaft With Planetary Hubs | 42 in (1066.8 mm) |
| Drop Boxes | 48 in (1219.2 mm) |
Electrical
| Alternator | 160 amps |
| Battery Disconnect Switch | Yes |
| Forward Lighting (Standard) | 4 high/low on grill, 10 field working, 2 amber warning |
| Rear Lighting (Standard) | 6-working, 2-backup, 2-red tail/brake, amber warning with red signal |
| Beacon | 1 Amber rotating |
Hydraulic
| System Capacity | 30 gal/min (113.6 L/min) |
| Performance | Pressure compensating. Max system pressure at idle. Closed loop flow. |
Chassis
| Suspension | Air bag with sway control - adjustment on all 4 air bags |
| Overall Chassis Length | 27.1 ft in (8.3 m) |
| Height | 155 in (3937 mm) |
| Paint | Epoxy primer/urethane top coat |
| Dual Rear Tire Options | 380/90R46 |
| Steering | Hydrostatic power steering / 2 Hydraulic cylinders |
| Adjustable Axle Track Width | 150 in (3810 mm) |
| Fixed Axle Track Width (Optional) | 120 in (3048 mm) |
| Wheel Tread Adjustment From Cab | Optional hydraulic adjust |
| Overall Width With Truss Boom | 171 in (4343 mm) |
| Overall Width With Mono Boom | 146 in (3708 mm) |
| Dry Weight | 28499.2 lb (12927 kg) |
| Wheel Base | 150 in (3810 mm) |
| Crop Clearance With Standard Tires | 42 (1067) (angle) or 48 (1219)(drop) |
| Turning Radius | 15 ft in (4.6 m) |
| Frame | C-Channel bolted - 3x9x3/8 110,000 psi |
