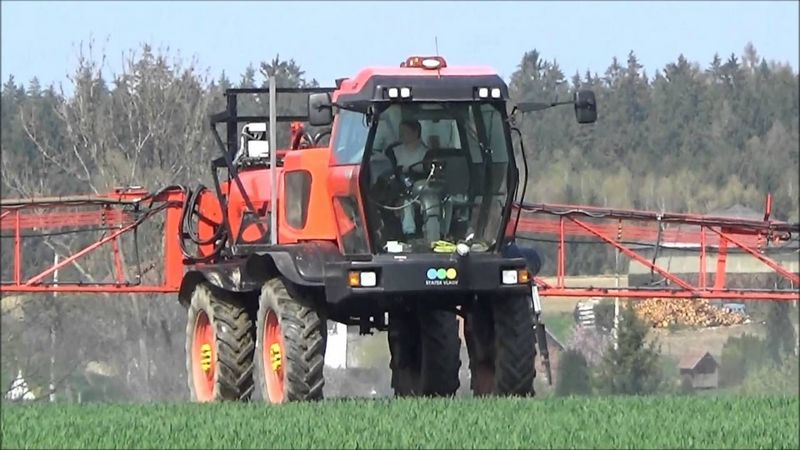

Sam SLc 4000
Contents:
Boom
| Max Boom Width | 78.75 ft in (24 m) |
| Max Adjustable Height | 84.65 in (215 cm) |
| Min Adjustable Height | 23.63 in (60 cm) |
| Number Of Sections | 7 |
Dimensions
| Overall Length | 23.79 in (7250 mm) |
| Wheelbase | 10.5 ft in (3200 mm) |
| Transport Width | 9.52 ft in (2900 mm) |
| Transport Height | 11.16 ft in (3400 mm) |
| Ground Clearance | 3.12 ft in (950 mm) |
| Tire Size | 13.6/28 |
| Turning Radius | 22.97 ft in (7 m) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2349 |
| Gross Power | 220 hp (164.1 kw) |
| Aspiration | Turbocharged, watercooled |
Operational
| Fuel Capacity | 58.2 gal (220 L) |
| Solution Tank Capacity | 1056.7 gal (4000 L) |
| Rinse Tank Capacity | 79.3 gal (300 L) |
| Hydraulic Fluid Capacity | 26.5 gal (100 L) |
| Dry Weight - Min | 15322 lb (6950 kg) |
Transmission
| Transmission Type | Fully hydrostatic 4 wheel drive with 4-speed transmission |
| Max Speed | 24.9 mph (40 km/h) |
