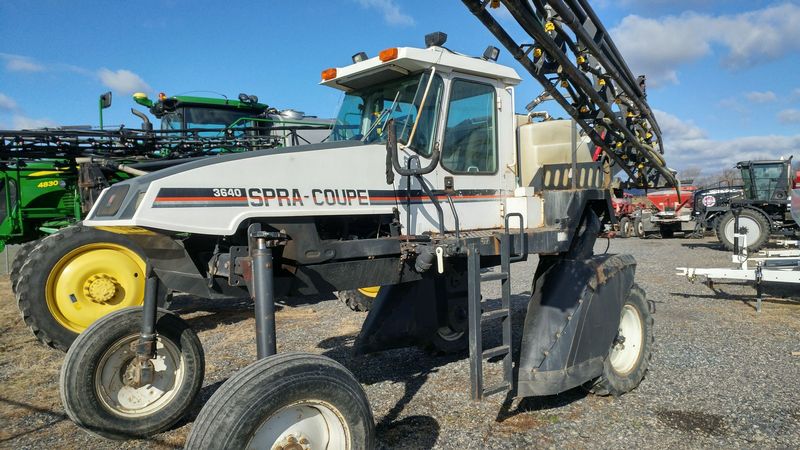

Spra-Coupe 3640
Browse All Spra-Coupe or Sprayer Models
Contents:
Boom
| Min Boom Width | 60 ft in (18.29 m) |
| Max Adjustable Height | 92 in (233.68 cm) |
| Min Adjustable Height | 21 in (53.34 cm) |
| Nozzle Spacing | 20 in (50.8 cm) |
Dimensions
| Overall Length | 19.67 in (5995 mm) |
| Wheelbase | 11.53 ft in (3514 mm) |
| Transport Height | 10.1 ft in (3076 mm) |
| Ground Clearance | 4.04 ft in (1231 mm) |
| Tire Size | Front 9.00x24 Rib 8-ply, Rear 12.4x24 F8 8 ply |
| Turning Radius | 13.67 ft in (4.17 m) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | Diesel 1000 Series |
| Gross Power | 110 hp (82.1 kw) |
| Displacement | 244.1 cu in (4 L) |
| Aspiration | Turbo-Charged |
Operational
| Fuel Capacity | 25 gal (94.7 L) |
| Solution Tank Capacity | 300 gal (1135.7 L) |
| Dry Weight - Min | 8320 lb (3773.9 kg) |
Transmission
| Transmission Type | Borg-Warner T-5, manual shift |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 1 |
| Max Speed | 20.8 mph (33.5 km/h) |
