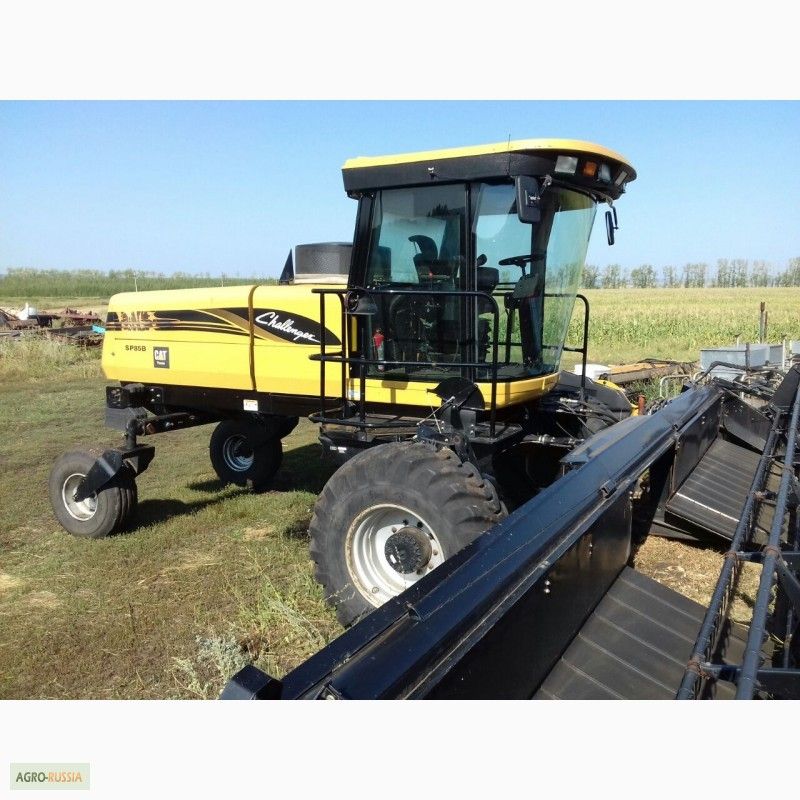

Challenger SP85B
Browse All Challenger or Swather Models
Contents:
Dimensions
| Length W/ Header | 21.46 ft in (6540 mm) |
| Height To Top Of Cab | 11.03 ft in (3360 mm) |
| Wheelbase | 11.67 in (3556 mm) |
| Ground Clearance | 39.77 in (1010 mm) |
| Front Wheel Tread Width | 127.49 in (3238 mm) |
| Rear Wheel Tread Width - Max | 120 in (3048 mm) |
| Rear Wheel Tread Width - Min | 84.41 in (2144 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Power | 85 hp (63.4 kw) |
| Displacement | 269 cu in (4.5 L) |
| Aspiration | Natural |
Operational
| Operating Weight W/O Attachment | 8500 lb (3855.6 kg) |
| Fuel Capacity | 60 gal (227.2 L) |
| Front Tire Size | 16.9x28 bar tread |
| Rear Tire Size | 14L x 16.1 |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed | 11 mph (17.8 km/h) |
| Final Drive Type | Direct Drive Planetary |
