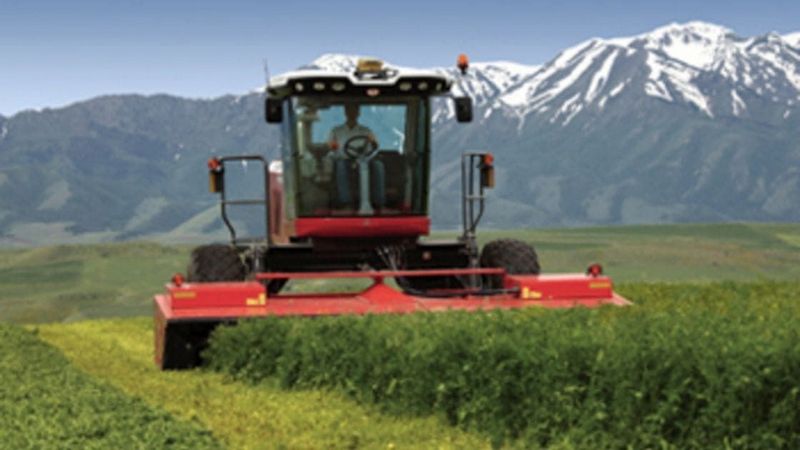

Massey Ferguson 9225 Self-Propelled
Browse All Massey Ferguson or Swather Models
Contents:
Dimensions
| Length W/ Header | 21.47 ft in (6543 mm) |
| Height To Top Of Cab | 11.02 ft in (3358 mm) |
| Wheelbase | 11.67 in (3556 mm) |
| Front Wheel Tread Width | 127.6 in (3241 mm) |
| Rear Wheel Tread Width - Max | 120 in (3048 mm) |
| Rear Wheel Tread Width - Min | 84.41 in (2144 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | B3.3T |
| Power | 85 hp (63.4 kw) |
| Aspiration | Turbocharged |
| Displacement | 201 cu in (3.3 L) |
Operational
| Operating Weight W/O Attachment | 8500 lb (3855.6 kg) |
| Fuel Capacity | 80 gal (302.9 L) |
| Front Tire Size | 18.4 x 26 Turf Tread |
| Rear Tire Size | 14L x 16.1 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 1 |
| Number Of Reverse Gears | 1 |
| Max Speed | 11 mph (17.8 km/h) |
| Final Drive Type | Direct Drive Planetary |
