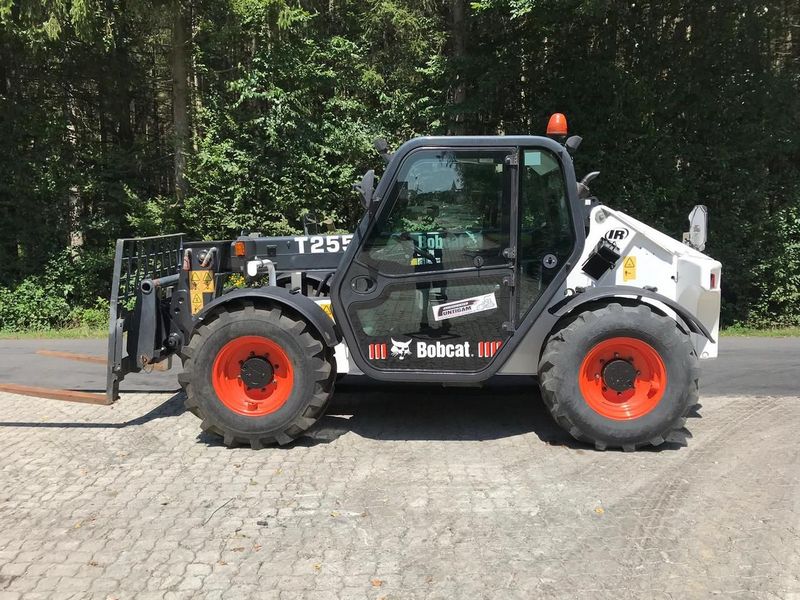

Bobcat T2556
Browse All Bobcat or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 14.47 ft in (4408 mm) |
| Ground Clearance | 1.12 ft in (340 mm) |
| Width Over Tires | 6.51 ft in (1984 mm) |
| Overall Height | 6.88 ft in (2096 mm) |
| Wheelbase | 8.21 ft in (2500 mm) |
| Turning Radius Outside Tires | 12.29 ft in (3745 mm) |
Lift
| Max Lift Height | 18.25 ft in (5560 mm) |
| Max Forward Reach | 10.01 ft in (3050 mm) |
| Max Load At Max Reach | 2425.09 lb (1100 kg) |
| Max Load At Max Height | 5511.56 lb (2500 kg) |
| Max Lift Capacity | 5511.56 lb (2500 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1004.40T |
| Gross Power | 104.6 hp (78 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 290.6 lb ft (394 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 10846.8 lb (4920 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Hydraulic System Fluid Capacity | 17.2 gal (65 L) |
| Tire Size | 400/70x20 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 18.7 mph (30 km/h) |
| Max Speed - Reverse | 18.7 mph (30 km/h) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 24.1 gal/min (91 L/min) |
| Relief Valve Pressure | 3190.9 psi (22000 kPa) |
