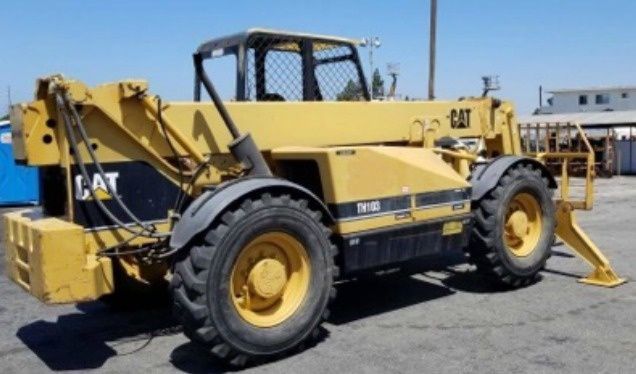

Caterpillar TH103 Non-US
Browse All Caterpillar or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 20.78 ft in (6332 mm) |
| Ground Clearance | 19.53 ft in (496 mm) |
| Width Over Tires | 8.01 ft in (2440 mm) |
| Overall Height | 8.78 ft in (2675 mm) |
| Wheelbase | 10.42 ft in (3175 mm) |
| Turning Radius Outside Tires | 13.03 ft in (3970 mm) |
Lift
| Max Lift Height | 44.3 ft in (13500 mm) |
| Max Forward Reach | 28.42 ft in (8660 mm) |
| Max Load At Max Reach | 3086.48 lb (1400 kg) |
| Max Load At Max Height | 6613.87 lb (3000 kg) |
| Max Lift Capacity | 11023.12 lb (5000 kg) |
Engine
| Engine Model | 3054T |
| Gross Power | 109 hp (81.3 kw) |
| Displacement | 244.1 cu in (4 L) |
| Aspiration | Turbo |
Operational
| Operating Weight | 25044.6 lb (11360 kg) |
| Fuel Capacity | 37 gal (140 L) |
| Hydraulic System Fluid Capacity | 45 gal (170 L) |
| Tire Size | 14x24 16PR 17.5R25 |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 19.9 mph (32 km/h) |
| Max Speed - Reverse | 13.7 mph (22 km/h) |
