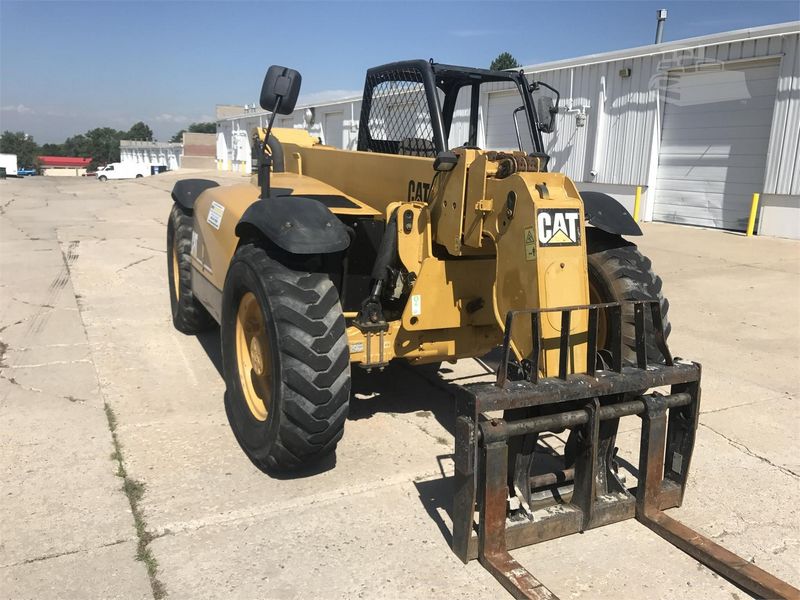

Caterpillar TH350B
Browse All Caterpillar or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 17.39 ft in (5300 mm) |
| Ground Clearance | 1.67 ft in (508 mm) |
| Width Over Tires | 8.01 ft in (2440 mm) |
| Overall Height | 7.91 ft in (2410 mm) |
| Wheelbase | 10.01 ft in (3050 mm) |
| Height - Top Of Hood | 76.8 in (1950.72 mm) |
| Height | 7.9 ft in (2407.92 mm) |
| Length - Front Of Tire | 15.42 ft in (4.71 m) |
| Turning Radius - Over Tires | 12.1 ft in (3.69 m) |
| Turning Radius Outside Tires | 12.14 ft in (3700 mm) |
| Wheel Base | 10 ft in (3.05 m) |
| Width | 8 ft |
| Length - Fork Face | 17.4 ft in (5.31 m) |
| Rear - Overhang | 3.31 ft |
| Turning Radius - Over Forks | 16.4 ft in (5 m) |
Lift
| Max Lift Height | 36.09 ft in (11000 mm) |
| Max Forward Reach | 24.28 ft in (7400 mm) |
| Max Load At Max Height | 5511.56 lb (2500 kg) |
| Max Load At Max Reach | 1752.68 lb (795 kg) |
| Max Lift Capacity | 6613.87 lb (3000 kg) |
Engine
| Engine Make | 2236 |
| Engine Model | 3054T |
| Gross Power | 99 hp (73.9 kw) |
| Net Power | 94.9 hp (70.8 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 296.5 lb ft (402 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 268 cu in (4.4 L) |
| Bore | 4 in (101.6 mm) |
| Stroke | 5 in (127 mm) |
| Engine Model | Cat 3054E |
| Maximum Torque | 303 lb ft (410.9 Nm) |
Operational
| Operating Weight | 18078 lb (8200 kg) |
| Fuel Capacity | 26.5 gal (100 L) |
| Hydraulic System Fluid Capacity | 17.2 gal (65 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Tire Size | 13.00-24 |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 19.9 mph (32 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Weights
| Operating Weight | 18700 lb (8482.2 kg) |
Hydraulic
| Pump Flow Capacity | 29.9 gal/min (113 L/min) |
| Relief Valve Pressure | 3626 psi (25000 kPa) |
Hydraulic System
| Pump Type | Variable Displacement Axial Piston Pump |
| Maximum System Pressure | 3625 psi |
| Maximum Pump Flow | 30 gal/min |
| Auxiliary Hydraulic Supply | 13 gal/min |
Brakes
| Parking Brake | Dry disc on front axle |
| Foot Brake | Servo assisted service brake |
Operating Specifications
| Rated Load Capacity | 6600 lb (2993.8 kg) |
| Maximum Lift Height | 36 ft in (11 m) |
| Maximum Forward Reach | 24 ft in (7.4 m) |
| Top Travel Speed | 25 mph (40.3 km/h) |
| Load At Maximum Height | 5000 lb (2268 kg) |
| Load At Maximum Reach | 1750 lb (793.8 kg) |
| Load At Maximum Reach - No Stabilizers | 1750 lb (793.8 kg) |
| Load At Maximum Height - No Stabilizers | 5500 lb (2494.8 kg) |
Service Refill Capacities
| Fuel Tank | 23 gal (87.1 L) |
| Hydraulic Tank | 17 gal (64.4 L) |
Boom Performance
| Boom Up | 10 s |
| Boom Down | 7 s |
| Tele In | 13 s |
| Tele Out | 14 s |
| Crowd Forward - Dump | 3 s |
| Crowd Backward | 3 s |
| Combined - Up And Out | 25 s |
| Combined - Down And In | 14 s |
Transmission Speeds
| Forward - 4 | 25 mph (40.3 km/h) |
| Forward - 1 | 4 mph (6.5 km/h) |
| Forward - 2 | 7 mph (11.3 km/h) |
| Forward - 3 | 13 mph (21 km/h) |
| Reverse - 1 | 4 mph (6.5 km/h) |
| Reverse - 2 | 7 mph (11.3 km/h) |
| Reverse - 3 | 13 mph (21 km/h) |
