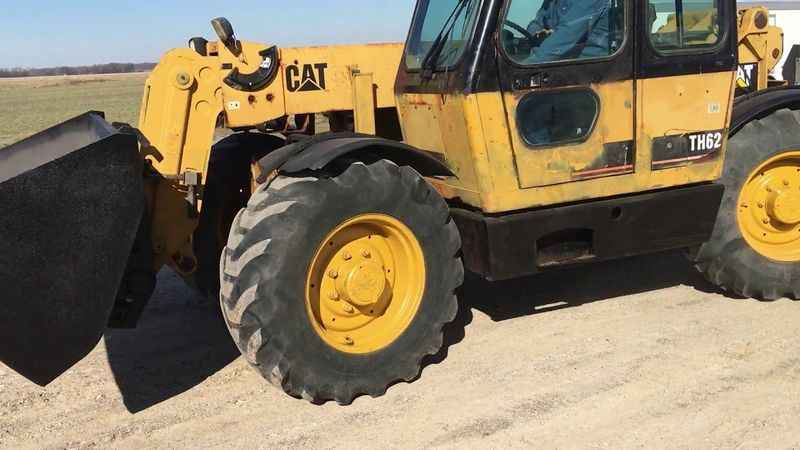

Caterpillar TH62 Non-US
Browse All Caterpillar or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 15.62 ft in (4760 mm) |
| Ground Clearance | 17.72 ft in (450 mm) |
| Width Over Tires | 7.32 ft in (2230 mm) |
| Overall Height | 7.98 ft in (2430 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
| Turning Radius Outside Tires | 11.91 ft in (3630 mm) |
Lift
| Max Lift Height | 24.94 ft in (7600 mm) |
| Max Forward Reach | 13.42 ft in (4090 mm) |
| Max Load At Max Reach | 2932.15 lb (1330 kg) |
| Max Lift Capacity | 6613.87 lb (3000 kg) |
Engine
| Engine Model | 3054 |
| Gross Power | 109 hp (81.3 kw) |
| Net Power | 81 hp (60.5 kw) |
| Displacement | 244.1 cu in (4 L) |
Operational
| Operating Weight | 15079.7 lb (6840 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Hydraulic System Fluid Capacity | 39.7 gal (150 L) |
| Tire Size | Construct: 13x24 12PR Agricult: 15.5x24 10PR |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 19.9 mph (32 km/h) |
| Max Speed - Reverse | 13.7 mph (22 km/h) |
