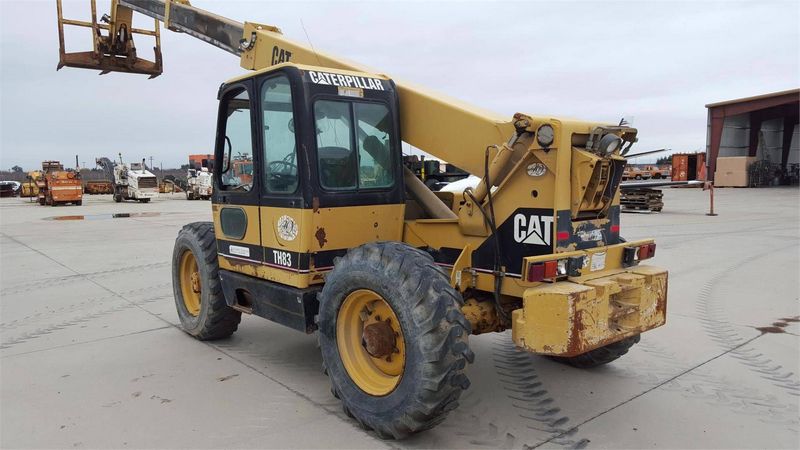

Caterpillar TH83 Non-US
Browse All Caterpillar or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 18.77 ft in (5720 mm) |
| Ground Clearance | 17.72 ft in (450 mm) |
| Width Over Tires | 8.04 ft in (2450 mm) |
| Overall Height | 8.04 ft in (2450 mm) |
| Wheelbase | 9.75 ft in (2970 mm) |
| Turning Radius Outside Tires | 12.44 ft in (3790 mm) |
Lift
| Max Lift Height | 4.11 ft in (1250 mm) |
| Max Forward Reach | 26.71 ft in (8140 mm) |
| Max Load At Max Reach | 1543.24 lb (700 kg) |
| Max Load At Max Height | 5511.56 lb (2500 kg) |
| Max Lift Capacity | 8818.5 lb (4000 kg) |
Engine
| Engine Model | 3054T |
| Gross Power | 109 hp (81.3 kw) |
| Displacement | 244.1 cu in (4 L) |
| Aspiration | Turbo |
Operational
| Operating Weight | 22046.3 lb (10000 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Hydraulic System Fluid Capacity | 39.7 gal (150 L) |
| Tire Size | 14x24 12PR |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 19.9 mph (32 km/h) |
| Max Speed - Reverse | 13.7 mph (22 km/h) |
