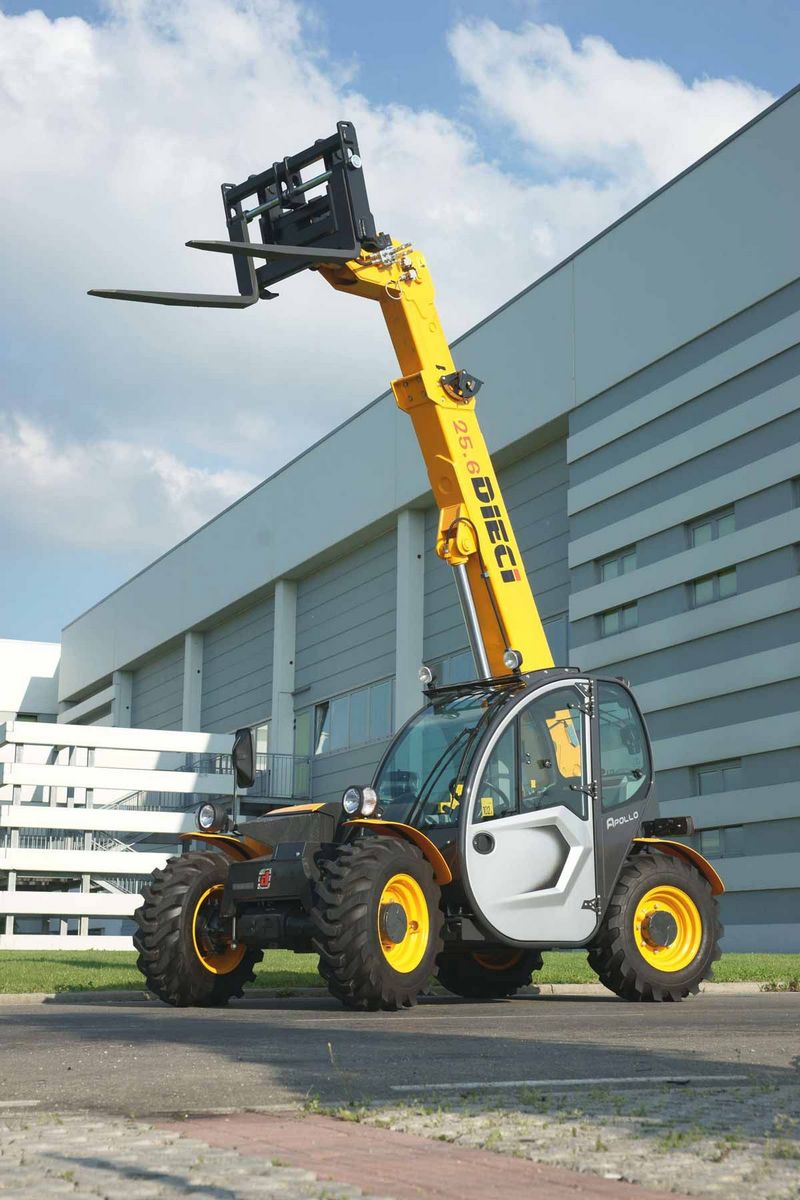

DIECI Apollo 25.6
Browse All DIECI or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 13.44 ft in (4096 mm) |
| Width Over Tires | 5.91 ft in (1800 mm) |
| Overall Height | 6.27 ft in (1910 mm) |
Lift
| Max Lift Height | 18.97 ft in (5780 mm) |
| Max Forward Reach | 10.67 ft in (3250 mm) |
| Max Lift Capacity | 5511.56 lb (2500 kg) |
| Max Load At Max Height | 3747.86 lb (1700 kg) |
| Max Load At Max Reach | 1763.7 lb (800 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNV98 |
| Gross Power | 69.8 hp (52 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 202.6 cu in (3.4 L) |
Operational
| Operating Weight | 10582.2 lb (4800 kg) |
| Fuel Capacity | 21.2 gal (80 L) |
| Hydraulic System Fluid Capacity | 18.5 gal (70 L) |
| Tire Size | 12 - 16.5 |
Transmission
| Transmission Type | Hydrostatic with variable capacity pump |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 16.2 mph (26 km/h) |
| Max Speed - Reverse | 16.2 mph (26 km/h) |
Hydraulic
| Pump Type | Gear pump |
| Pump Flow Capacity | 21.2 gal/min (80 L/min) |
| Relief Valve Pressure | 2900.8 psi (20000 kPa) |
