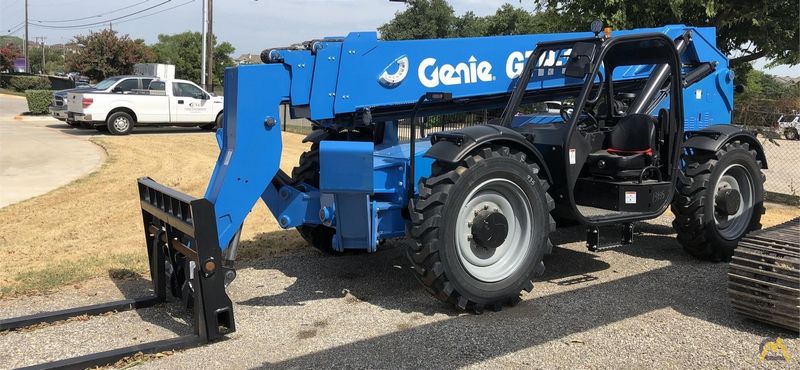

Genie GTH1056
Browse All Genie or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 22.02 ft in (6710 mm) |
| Ground Clearance | 1.51 ft in (460 mm) |
| Width Over Tires | 8.5 ft in (2590 mm) |
| Overall Height | 8.5 ft in (2590 mm) |
| Wheelbase | 10.67 ft in (3250 mm) |
| Turning Radius Outside Tires | 13.26 ft in (4040 mm) |
Lift
| Max Lift Height | 56.83 ft in (17320 mm) |
| Max Forward Reach | 42 ft in (12800 mm) |
| Lift Capacity At Max - Height | 3999185.18 lb (1814000 kg) |
| Max Lift Capacity | 10000.17 lb (4536 kg) |
| Max Load At Max Height | 3999.19 lb (1814 kg) |
| Max Load At Max Reach | 3000.5 lb (1361 kg) |
| Lift Capacity At Max - Reach | 3000491.19 lb (1361000 kg) |
Engine
| Power | Deutz TCD 3.6 L |
| Emission Tier Level | Tier 4i |
| Battery | 1000 CCA at 0˚F (-18˚C) |
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1104C-44TA |
| Gross Power | 121.1 hp (90.3 kw) |
| System Voltage | 12 V |
| Aspiration | Turbocharged |
Operational
| Turning Radius - Axle Outside | 13.3 ft in (4.1 m) |
| Operating Weight | 30000.6 lb (13608 kg) |
| Fuel Capacity | 35.1 gal (132.5 L) |
| Hydraulic System Fluid Capacity | 55.1 gal (208.2 L) |
| Drawbar Pull | 28799 lb (13063 kg) |
| Tire Size | 14 x 24 in, 12 ply |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 16.8 mph (27 km/h) |
Hydraulic
| Auxiliary Hydraulic Flow | 15 gal/min (56.8 L/min) |
| Auxiliary Hydraulic Pressure | 3200 psi (22063.3 kPa) |
| Pump Type | Variable displacement |
| Pump Flow Capacity | 15.1 gal/min (57 L/min) |
| Relief Valve Pressure | 3200 psi (22063.3 kPa) |
Boom
| Boom Up | 13.5 sec |
| Boom Extend | 16 sec |
| Boom Retract | 15 sec |
| Boom Down | 12 sec |
