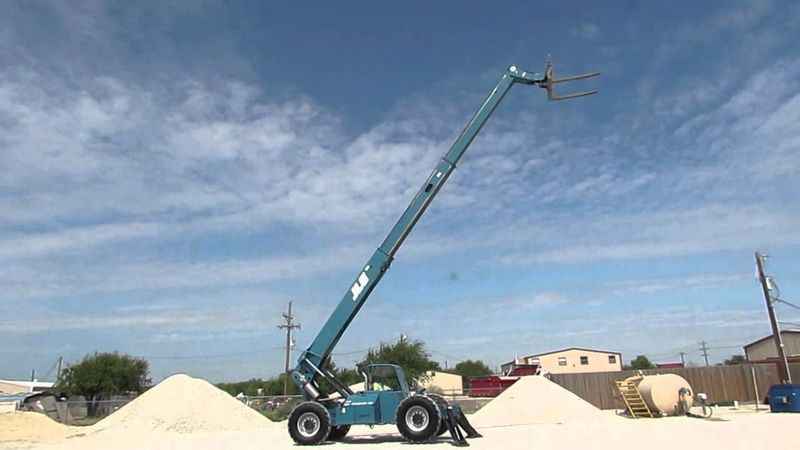

Gradall 534D10-45
Browse All Gradall or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 19.72 ft in (6010 mm) |
| Ground Clearance | 19.3 ft in (490 mm) |
| Width Over Tires | 8.21 ft in (2500 mm) |
| Overall Height | 7.75 ft in (2360 mm) |
| Wheelbase | 11.23 ft in (3420 mm) |
| Turning Radius Outside Tires | 14.57 ft in (4440 mm) |
Lift
| Max Lift Height | 45 ft in (13716 mm) |
| Max Forward Reach | 31.5 ft in (9601.2 mm) |
| Max Load At Max Reach | 3000 lb (1360.78 kg) |
| Max Load At Max Height | 7000 lb (3175.15 kg) |
| Max Lift Capacity | 10000 lb (4535.93 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | e 4045TF275 |
| Gross Power | 114 hp (85 kw) |
| Torque Measured @ | 2500 rpm |
| Displacement | 274.7 cu in (4.5 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 25300 lb (11475.9 kg) |
| Fuel Capacity | 38.1 gal (144 L) |
| Hydraulic System Fluid Capacity | 40.1 gal (151.6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Drawbar Pull | 21000 lb (9525.5 kg) |
| Tire Size | 14.00x24-12PR |
Transmission
| Max Speed - Forward | 19 mph (30.6 km/h) |
Hydraulic
| Pump Type | single-section gear pump |
| Relief Valve Pressure | 6300 psi (43437 kPa) |
