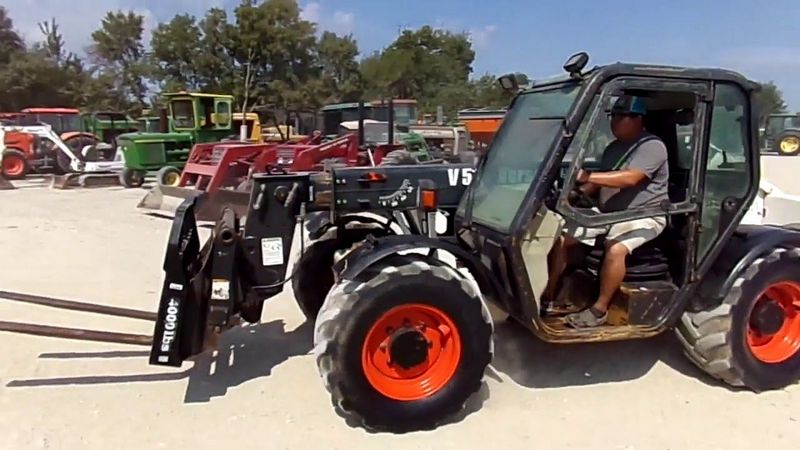

Ingersoll Rand VR518
Browse All Ingersoll Rand or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 14.51 ft in (4420 mm) |
| Ground Clearance | 55.99 ft in (1422 mm) |
| Width Over Tires | 6.5 ft in (1981 mm) |
| Overall Height | 6.92 ft in (2108 mm) |
| Wheelbase | 8.17 ft in (2490 mm) |
| Turning Radius Outside Tires | 12.34 ft in (3759 mm) |
Lift
| Max Lift Height | 18.34 ft in (5588 mm) |
| Max Forward Reach | 10.67 ft in (3251 mm) |
| Max Load At Max Reach | 2004.01 lb (909 kg) |
| Max Load At Max Height | 5011.11 lb (2273 kg) |
| Max Lift Capacity | 5011.11 lb (2273 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1004.40T |
| Gross Power | 99 hp (73.9 kw) |
Operational
| Operating Weight | 5011.2 lb (2273 kg) |
| Fuel Capacity | 38.4 gal (145 L) |
| Operating Voltage | 12 V |
| Drawbar Pull | 8317 lb (3772.6 kg) |
Transmission
| Transmission Type | hydrostatic with inching |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 4.8 mph (7.6 km/h) |
| Max Speed - Reverse | 4.8 mph (7.6 km/h) |
