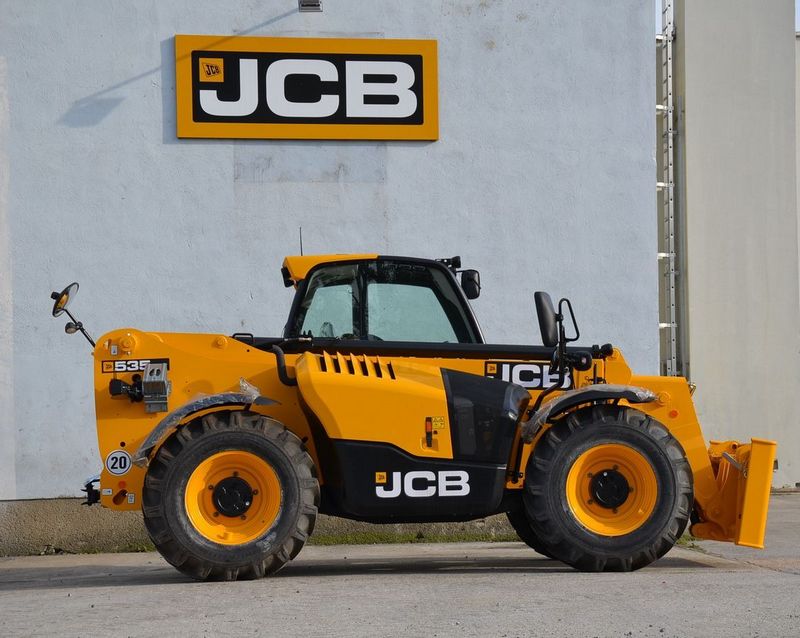

JCB 535-95 Sway
Browse All JCB or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 16.38 ft in (4990 mm) |
| Ground Clearance | 1.32 ft in (400 mm) |
| Width Over Tires | 7.52 ft in (2290 mm) |
| Overall Height | 8.17 ft in (2490 mm) |
| Wheelbase | 9.03 ft in (2750 mm) |
| Turning Radius Outside Tires | 12.14 ft in (3700 mm) |
Lift
| Max Lift Height | 31.17 ft in (9500 mm) |
| Max Forward Reach | 21.4 ft in (6520 mm) |
| Max Load At Max Reach | 1212.55 lb (550 kg) |
| Max Load At Max Height | 3527.4 lb (1600 kg) |
| Max Lift Capacity | 7716.18 lb (3500 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2257 |
| Engine Model | 444 |
| Gross Power | 100 hp (74.6 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 306.1 lb ft (415 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 268.6 cu in (4.4 L) |
| Aspiration | turbo |
Operational
| Operating Weight | 7716.2 lb (3500 kg) |
| Fuel Capacity | 33.1 gal (125 L) |
| Hydraulic System Fluid Capacity | 29.9 gal (113 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
| Tire Size | 15.5R24 |
Transmission
| Transmission Type | 4-speed powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 19.9 mph (32 km/h) |
| Max Speed - Reverse | 19.9 mph (32 km/h) |
Hydraulic
| Pump Flow Capacity | 21.7 gal/min (82 L/min) |
| Relief Valve Pressure | 3500 psi (24131.7 kPa) |
