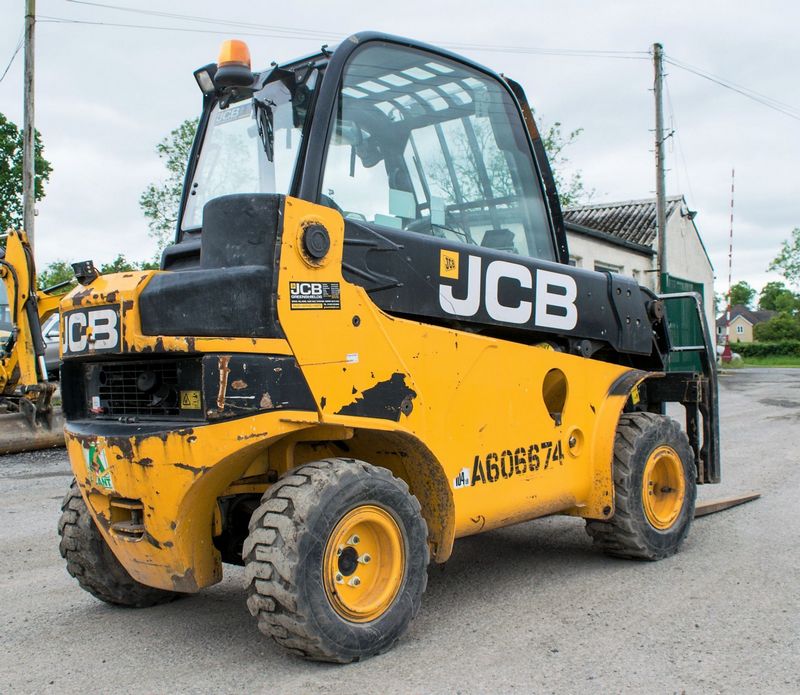

JCB TLT 30D 4x4
Browse All JCB or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 9.32 ft in (2840 mm) |
| Ground Clearance | 0.63 ft in (192 mm) |
| Width Over Tires | 4.59 ft in (1397 mm) |
| Overall Height | 7.55 ft in (2299 mm) |
| Wheelbase | 5.84 ft in (1780 mm) |
| Turning Radius Outside Tires | 9.84 ft in (2997 mm) |
Lift
| Max Lift Height | 12.8 ft in (3900 mm) |
| Max Forward Reach | 7.32 ft in (2230 mm) |
| Max Load At Max Reach | 2750 lb (1247.38 kg) |
| Max Load At Max Height | 6000 lb (2721.56 kg) |
| Max Lift Capacity | 6000 lb (2721.56 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2257 |
| Engine Model | 404 |
| Gross Power | 50 hp (37.3 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 134.3 cu in (2.2 L) |
Operational
| Operating Weight | 11220 lb (5089.4 kg) |
| Tire Size | Front - 24 x 10 x 12 / Rear - 27 x 10 x 12 |
Transmission
| Transmission Type | TCR Hydro |
| Max Speed - Forward | 12.5 mph (20 km/h) |
Hydraulic
| Pump Flow Capacity | 18.5 gal/min (70 L/min) |
| Relief Valve Pressure | 2465 psi (16995.6 kPa) |
