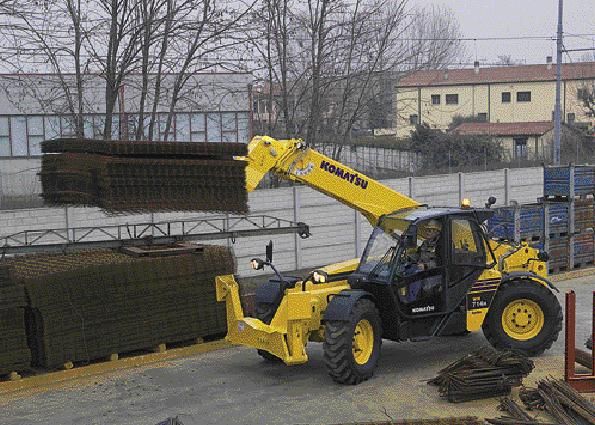

Komatsu WH714H
Browse All Komatsu or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 20.25 ft in (6170 mm) |
| Ground Clearance | 1.53 ft in (465 mm) |
| Width Over Tires | 7.88 ft in (2400 mm) |
| Overall Height | 8.04 ft in (2450 mm) |
| Wheelbase | 11 ft in (3350 mm) |
| Turning Radius Outside Tires | 12.21 ft in (3720 mm) |
Lift
| Max Lift Height | 46.26 ft in (14100 mm) |
| Max Forward Reach | 31.5 ft in (9600 mm) |
| Max Load At Max Reach | 2976.25 lb (1350 kg) |
| Max Load At Max Height | 8818.49 lb (4000 kg) |
| Max Lift Capacity | 9920.81 lb (4500 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | SAA4D104E-2 |
| Net Power | 99.3 hp (74 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 309.8 lb ft (420 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 273.7 cu in (4.5 L) |
| Aspiration | Turbo-intercooled |
Operational
| Operating Weight | 24647.7 lb (11180 kg) |
| Fuel Capacity | 34.4 gal (130 L) |
| Hydraulic System Fluid Capacity | 33.1 gal (125 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Tire Size | 14.00 -24 PR16 |
Transmission
| Transmission Type | Full power shift |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.7 mph (38 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | piston,variable displacement, closed Load Sensing System |
| Pump Flow Capacity | 37.6 gal/min (142 L/min) |
| Relief Valve Pressure | 3771 psi (26000 kPa) |
