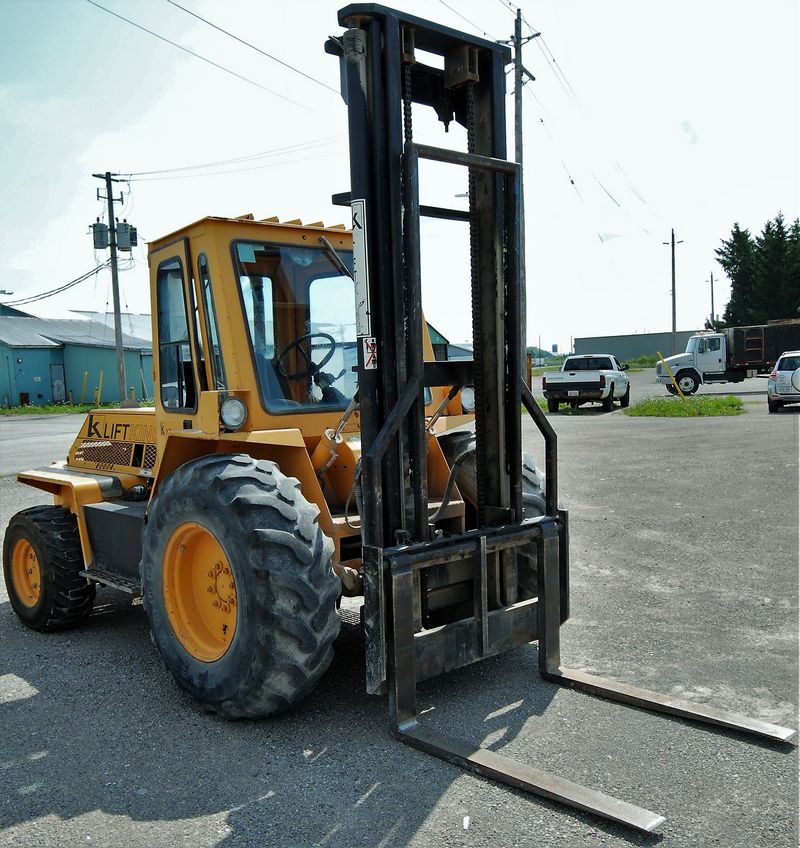

Lift King LK848R
Browse All Lift King or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 20.9 ft in (6370 mm) |
| Ground Clearance | 14.97 ft in (380 mm) |
| Width Over Tires | 8.4 ft in (2560 mm) |
| Overall Height | 8.76 ft in (2670 mm) |
| Wheelbase | 10.41 ft in (3170 mm) |
| Turning Radius Outside Tires | 14.6 ft in (4450 mm) |
Lift
| Max Lift Height | 48 ft in (14630 mm) |
| Max Forward Reach | 31.5 ft in (9600 mm) |
| Max Load At Max Reach | 2000 lb (907.19 kg) |
| Max Load At Max Height | 4000 lb (1814.37 kg) |
| Max Lift Capacity | 8000 lb (3628.74 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1004-40T |
| Gross Power | 110 hp (82.1 kw) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 26940 lb (12219.8 kg) |
| Operating Voltage | 12 V |
| Tire Size | 14.00x24 |
Transmission
| Transmission Type | electronic 3 speed powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
