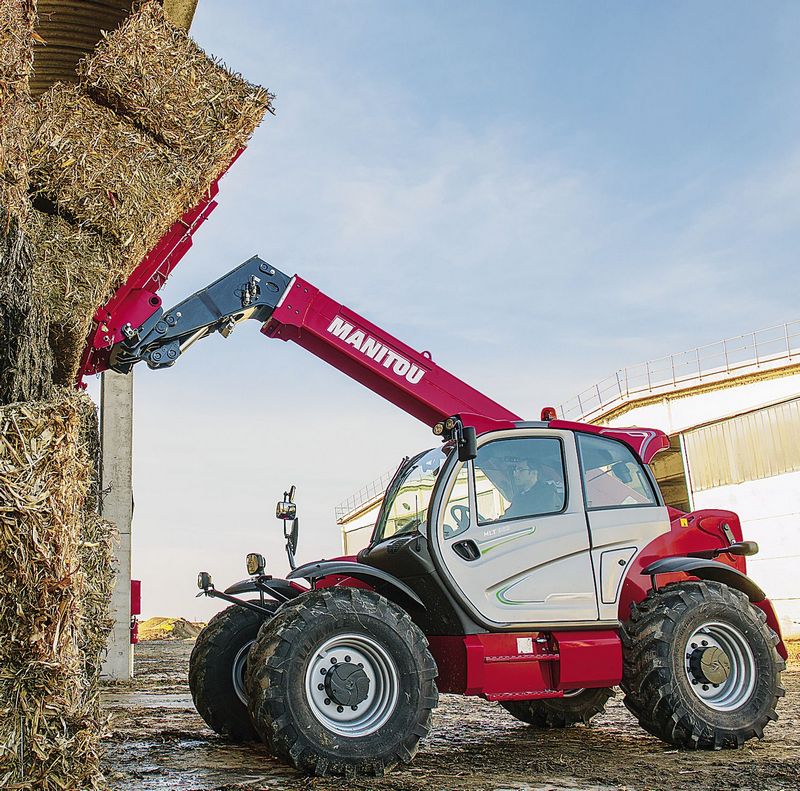

Manitou 6034XT
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 16 ft in (4876.8 mm) |
| Ground Clearance | 14 ft in (355.6 mm) |
| Overall Height | 7.83 ft in (2386.59 mm) |
| Wheelbase | 9.17 ft in (2795.02 mm) |
| Turning Radius Outside Tires | 12.5 ft in (3810 mm) |
Lift
| Max Lift Height | 34.25 ft in (10439.4 mm) |
| Max Forward Reach | 23.25 ft in (7086.6 mm) |
| Max Load At Max Height | 6000 lb (2721.56 kg) |
| Max Lift Capacity | 6000 lb (2721.56 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | e 4045T Turbocharged Diesel |
| Net Power | 115 hp (85.8 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 276 cu in (4.6 L) |
Operational
| Operating Weight | 15100 lb (6849.3 kg) |
| Fuel Capacity | 29 gal (109.8 L) |
| Hydraulic System Fluid Capacity | 35 gal (132.5 L) |
| Tire Size | 15.00 x 19.5 12 Ply |
Transmission
| Transmission Type | 3-Speed Power Shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 20 mph (32.2 km/h) |
| Max Speed - Reverse | 20 mph (32.2 km/h) |
Hydraulic
| Pump Type | Single Section Gear Type |
| Pump Flow Capacity | 29 gal/min (109.8 L/min) |
