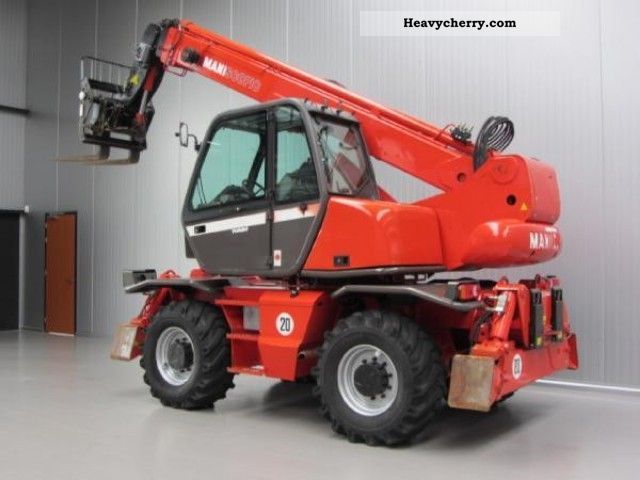

Manitou MRT 1542
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 17.72 ft in (5400 mm) |
| Ground Clearance | 18.12 ft in (460 mm) |
| Width Over Tires | 7.96 ft in (2425 mm) |
| Overall Height | 9.93 ft in (3025 mm) |
| Wheelbase | 7.62 ft in (2320 mm) |
| Turning Radius Outside Tires | 11.19 ft in (3410 mm) |
Lift
| Max Lift Height | 48.5 ft in (14780 mm) |
| Max Forward Reach | 41.02 ft in (12500 mm) |
| Max Load At Max Reach | 1763.7 lb (800 kg) |
| Max Load At Max Height | 5952.49 lb (2700 kg) |
| Max Lift Capacity | 9259.42 lb (4200 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104C.44 T |
| Gross Power | 17902.7 hp (13350 kw) |
| Displacement | 268.6 cu in (4.4 L) |
Operational
| Operating Weight | 29431.8 lb (13350 kg) |
| Fuel Capacity | 34.4 gal (130 L) |
| Hydraulic System Fluid Capacity | 37 gal (140 L) |
| Drawbar Pull | 24295.9 lb (11020.4 kg) |
| Tire Size | 18-22, 5 16 PR |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | 2 gear type pumps |
| Pump Flow Capacity | 30.4 gal/min (115 L/min) |
| Relief Valve Pressure | 3916.1 psi (27000 kPa) |
