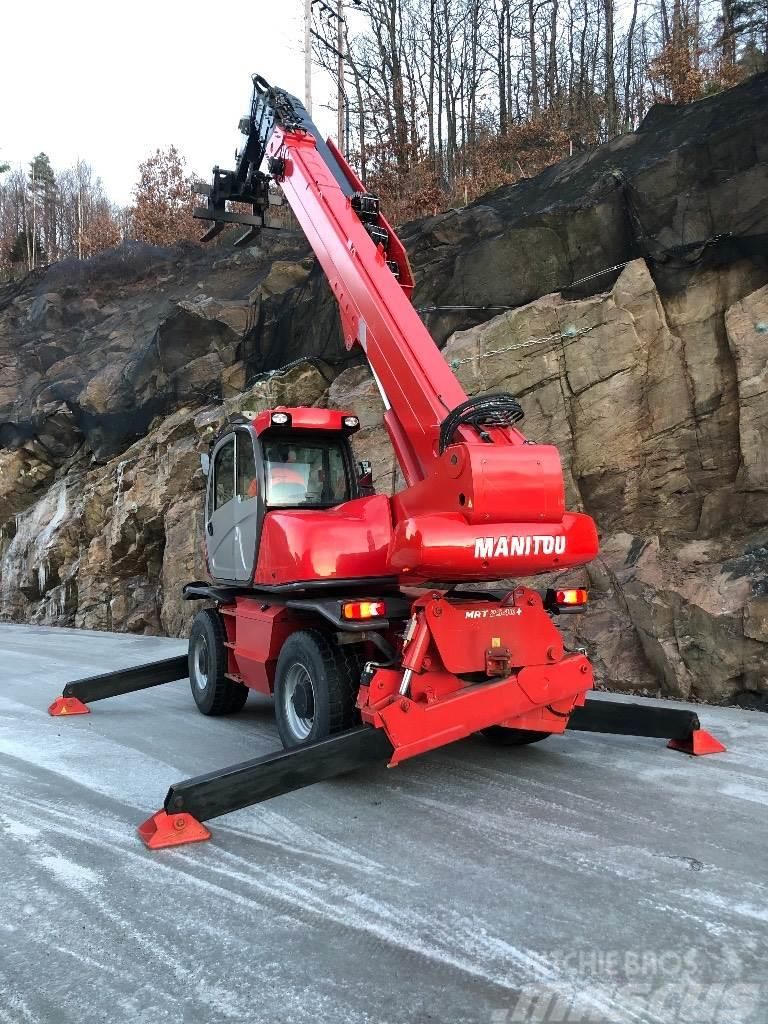

Manitou MRT 2540
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 18.94 ft in (5770 mm) |
| Ground Clearance | 14.57 ft in (370 mm) |
| Width Over Tires | 7.96 ft in (2425 mm) |
| Overall Height | 10.01 ft in (3050 mm) |
| Wheelbase | 9.03 ft in (2750 mm) |
| Turning Radius Outside Tires | 13.26 ft in (4040 mm) |
Lift
| Max Lift Height | 80.71 ft in (24600 mm) |
| Max Forward Reach | 60.7 ft in (18500 mm) |
| Max Load At Max Reach | 881.85 lb (400 kg) |
| Max Load At Max Height | 3858.09 lb (1750 kg) |
| Max Lift Capacity | 8818.5 lb (4000 kg) |
Engine
| Engine Make | 2345 |
| Engine Model | OM 904 LA (EURO 3) |
| Gross Power | 147.6 hp (110 kw) |
| Displacement | 259.4 cu in (4.3 L) |
Operational
| Operating Weight | 37842.4 lb (17165 kg) |
| Fuel Capacity | 60.8 gal (230 L) |
| Hydraulic System Fluid Capacity | 52.9 gal (200 L) |
| Drawbar Pull | 18446.1 lb (8367 kg) |
| Tire Size | 18-22.5 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 22.4 mph (36 km/h) |
| Max Speed - Reverse | 22.4 mph (36 km/h) |
Hydraulic
| Pump Type | 3 gear type pumps |
| Pump Flow Capacity | 42.3 gal/min (160 L/min) |
| Relief Valve Pressure | 3916.1 psi (27000 kPa) |
