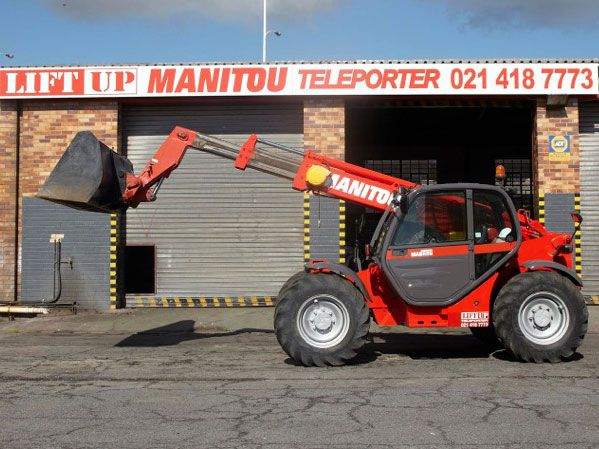

Manitou MT 1033 HLT
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 16.29 ft in (4965 mm) |
| Ground Clearance | 17.33 ft in (440 mm) |
| Width Over Tires | 7.42 ft in (2260 mm) |
| Overall Height | 8.37 ft in (2550 mm) |
| Wheelbase | 9.22 ft in (2810 mm) |
| Turning Radius Outside Tires | 12.53 ft in (3818 mm) |
Lift
| Max Lift Height | 31.53 ft in (9610 mm) |
| Max Forward Reach | 23.17 ft in (7060 mm) |
| Max Load At Max Reach | 1212.55 lb (550 kg) |
| Max Load At Max Height | 4409.25 lb (2000 kg) |
| Max Lift Capacity | 7275.26 lb (3300 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104.C 44 Turbo |
| Gross Power | 100 hp (74.6 kw) |
| Max Torque | 303.9 lb ft (412 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 17295.3 lb (7845 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Hydraulic System Fluid Capacity | 33.9 gal (128 L) |
| Drawbar Pull | 18671.9 lb (8469.4 kg) |
| Tire Size | 400/80-24 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | gear |
| Pump Flow Capacity | 27.8 gal/min (105 L/min) |
| Relief Valve Pressure | 3626 psi (25000 kPa) |
