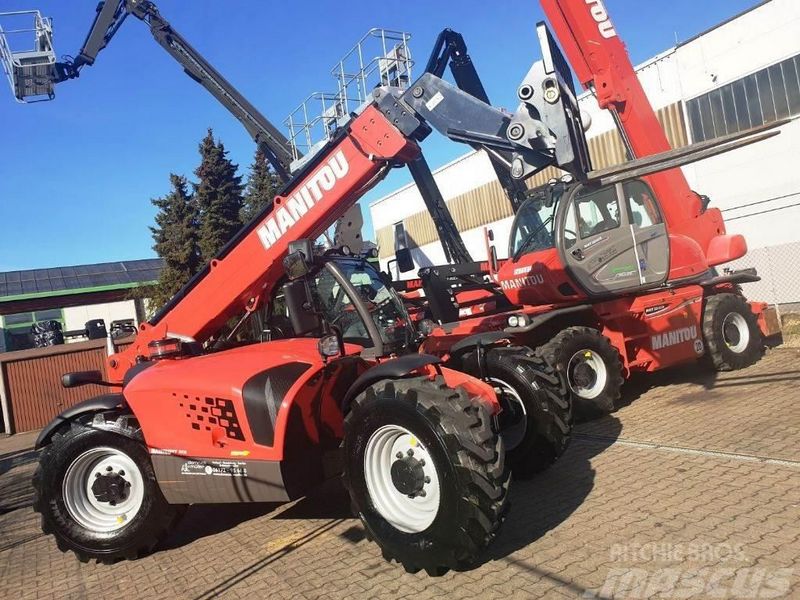

Manitou MT 932
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 15.48 ft in (4716 mm) |
| Ground Clearance | 17.33 ft in (440 mm) |
| Width Over Tires | 7.42 ft in (2261 mm) |
| Overall Height | 8.37 ft in (2550 mm) |
| Wheelbase | 8.4 ft in (2560 mm) |
| Turning Radius Outside Tires | 12.04 ft in (3668 mm) |
Lift
| Max Lift Height | 29.53 ft in (9000 mm) |
| Max Forward Reach | 21.59 ft in (6580 mm) |
| Max Load At Max Reach | 1102.32 lb (500 kg) |
| Max Load At Max Height | 3306.94 lb (1500 kg) |
| Max Lift Capacity | 7054.8 lb (3200 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104C-44 |
| Gross Power | 82.5 hp (61.5 kw) |
| Max Torque | 222.8 lb ft (302 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
Operational
| Operating Weight | 16843.4 lb (7640 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Hydraulic System Fluid Capacity | 33.1 gal (125 L) |
| Drawbar Pull | 18895.9 lb (8571 kg) |
| Tire Size | 400/80-24 TL 156B |
Transmission
| Transmission Type | torque convertor |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | gear |
| Pump Flow Capacity | 27.8 gal/min (105 L/min) |
| Relief Valve Pressure | 3481 psi (24000 kPa) |
