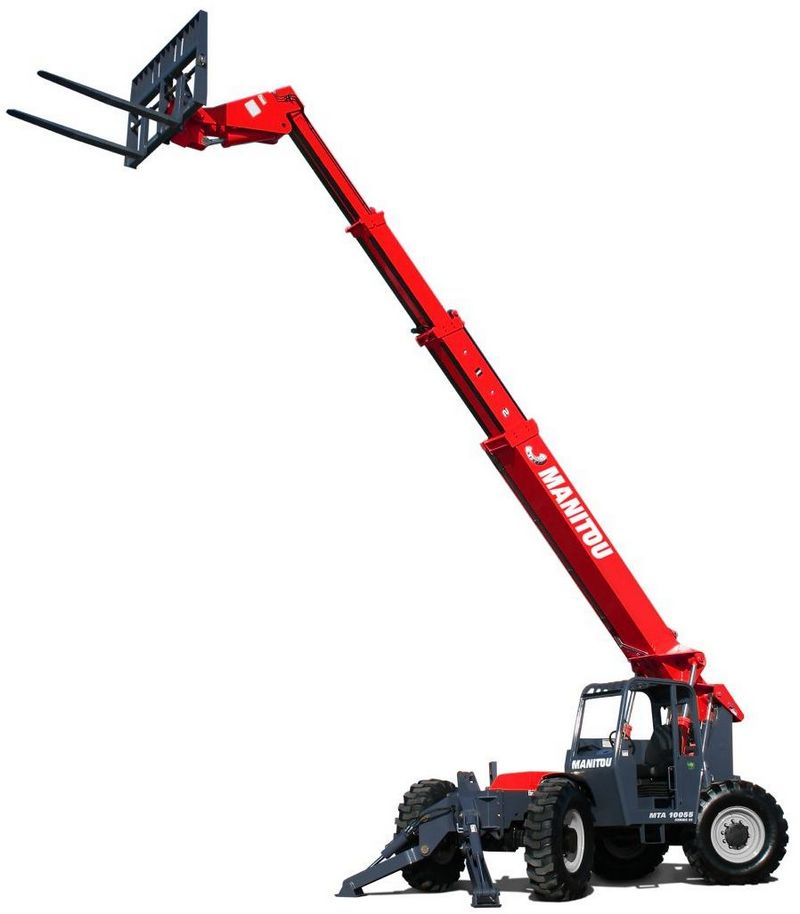

Manitou MTA 10055
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 20.12 ft in (6132.58 mm) |
| Ground Clearance | 1.6 ft in (487.68 mm) |
| Width Over Tires | 8.2 ft in (2499.36 mm) |
| Overall Height | 8.6 ft in (2621.29 mm) |
| Turning Radius Outside Tires | 13.11 ft in (3995.93 mm) |
| Weight | 27778.25 lb (12600 kg) |
Lift
| Max Lift Height | 55.1 ft in (16794.48 mm) |
| Max Lift Capacity | 10031.04 lb (4550 kg) |
Engine
| Fuel | Diesel |
| Emission Tier Level | Tier IV Final |
| Engine Make | Cummins |
| Gross Power | 120 hp (89.5 kw) |
Operational
| Tire Type | Pneumatic |
Transmission
| Number Of Wheels Front | 2 |
| Number Of Wheels Rear | 2 |
| Max Speed | 19.2 mph (30.9 km/h) |
| Transmission Type | Hydrostatic |
Hydraulic
| Pressure | 2465.7 psi (17000 kPa) |
