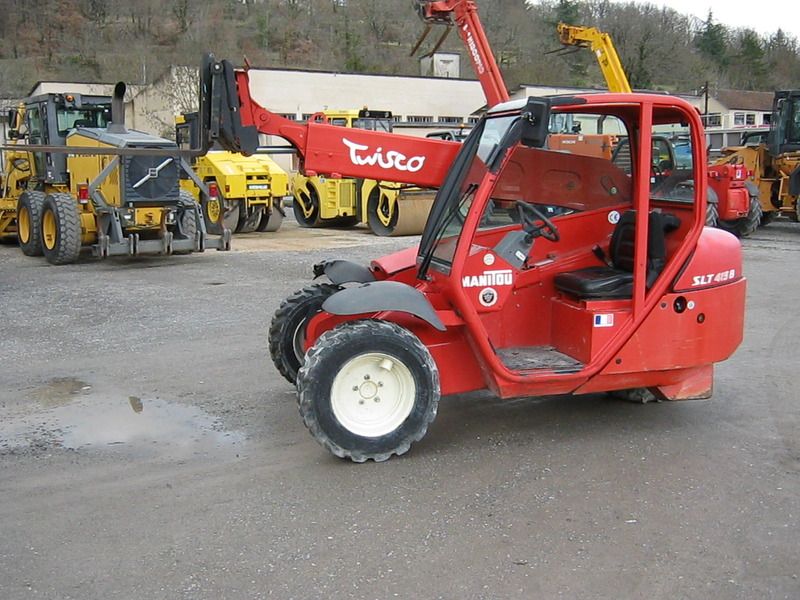

Manitou SLT 415
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Ground Clearance | 10.16 ft in (258 mm) |
| Width Over Tires | 5.46 ft in (1662 mm) |
| Overall Height | 6.24 ft in (1900 mm) |
| Turning Radius Outside Tires | 7.3 ft in (2225 mm) |
Lift
| Max Lift Height | 13.06 ft in (3980 mm) |
| Max Forward Reach | 7.03 ft in (2140 mm) |
| Max Load At Max Reach | 1433.01 lb (650 kg) |
| Max Load At Max Height | 3306.94 lb (1500 kg) |
| Max Lift Capacity | 3306.94 lb (1500 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 404 C22 |
| Gross Power | 51 hp (38 kw) |
| Max Torque | 105.5 lb ft (143 Nm) |
| Displacement | 135.3 cu in (2.3 L) |
Operational
| Operating Weight | 5555.7 lb (2520 kg) |
| Drawbar Pull | 4252.8 lb (1929 kg) |
| Tire Size | 10x16.5 10 PR SKS |
Transmission
| Transmission Type | hydrostatic |
| Max Speed - Forward | 8.4 mph (13.5 km/h) |
Hydraulic
| Pump Type | gear |
| Pump Flow Capacity | 10.6 gal/min (40 L/min) |
| Relief Valve Pressure | 3626 psi (25000 kPa) |
