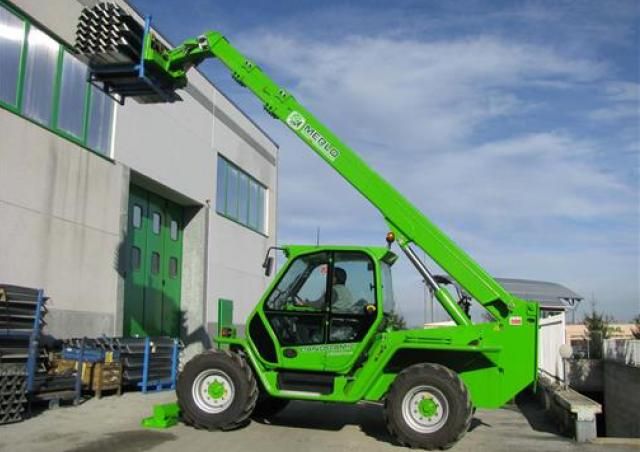

Merlo P 38.14
Browse All Merlo or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 18.34 ft in (5590 mm) |
| Ground Clearance | 1.58 ft in (480 mm) |
| Width Over Tires | 7.29 ft in (2220 mm) |
| Overall Height | 8.01 ft in (2440 mm) |
| Wheelbase | 9.03 ft in (2750 mm) |
| Turning Radius Outside Tires | 12.87 ft in (3920 mm) |
Lift
| Max Lift Height | 44.62 ft in (13600 mm) |
| Max Forward Reach | 29.86 ft in (9100 mm) |
| Total Unladen Mass With Forks | 19951.84 lb (9050 kg) |
| Max Load At Max Reach | 1984.17 lb (900 kg) |
| Max Load At Max Height | 5511.56 lb (2500 kg) |
| Max Lift Capacity | 8377.57 lb (3800 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Gross Power | 75 hp (56 kw) |
| Power Measured @ | 2400 rpm |
| Aspiration | natural |
Operational
| Frame Levelling | 10 % |
| Operating Weight | 19621.2 lb (8900 kg) |
| Fuel Capacity | 41 gal (155 L) |
| Hydraulic System Fluid Capacity | 27.8 gal (105 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Max Speed | 20.6 mph (33 km/h) |
| Tire Size | 400/70-20 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
Hydraulic
| Hydraulic Load-Sensing Pump | 30.4 gal/min (115 L/min) |
| Pump Type | load sensing |
| Pump Flow Capacity | 28.6 gal/min (108 L/min) |
| Relief Valve Pressure | 3045.8 psi (21000 kPa) |
Boom
| Boom Side-Shift | 13.6 in (345 mm) |
