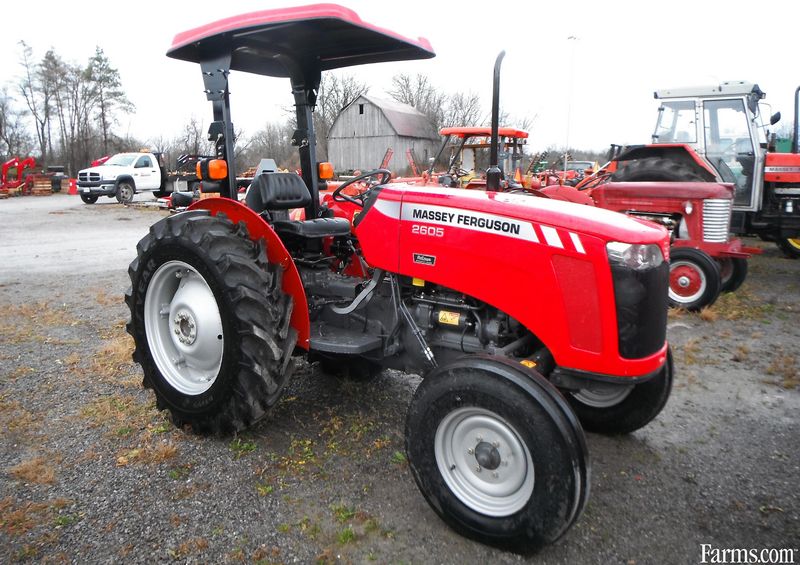

Massey Ferguson 2605
Browse All Massey Ferguson or Utility Tractor Models
Contents:
Dimensions
| Overall Length | 129.93 in (3300 mm) |
| Wheelbase | 6.41 ft in (1952 mm) |
| Overall Width | 5.48 ft in (1670 mm) |
| Ground Clearance | 10.04 in (255 mm) |
| Height To Top Of Rops | 92.33 in (2345 mm) |
| Height With Rops | 7.7 ft in (2345 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Model | S325.3 |
| Gross Power | 38.5 hp (28.8 kw) |
| Pto Power | 32 hp (23.9 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 152.6 cu in (2.5 L) |
| Aspiration | Natural |
Operational
| Fuel Capacity | 11.1 gal (42.1 L) |
| Tire Size Front - 2wd / 4wd | 13.6x28 |
Electrical
| Alternator | 36 amps |
| Battery | 622 |
Power Take-Off(Pto)
| Pto Speed | 540 rpm |
| Standard | Live |
| Optional | Independent |
| Power Take-Off(Pto) Type | Dry Dual Disc |
| Pto Speeds @ Engine Rpm | 1790 |
Transmission
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 2 |
Weights
| Shipping | 4530.5 lb (2055 kg) |
Hydraulic System
| Hydraulic System Type | Open Center and Modified Closed Center |
| Auxiliary Hydraulic Flow | 9.8 gal/min (37.1 L/min) |
| Steering Pump | 6.9 gal/min (26.2 L/min) |
| Pump Type | Gear and Scotch Yoke |
| Pump Flow Capacity | 20.9 gal/min (79.2 L/min) |
| Number Of Remote Control Valves | 1 or 2 Rear Valves |
3-Point Hitch
| Extendable Lower Links | Optiona |
| Category | Category I and II Cross Drilled Ball Ends |
| Asae Lift Capacity @ 24” | 3196.8 lb (1450 kg) |
| Stabilizers | Chain Type |
