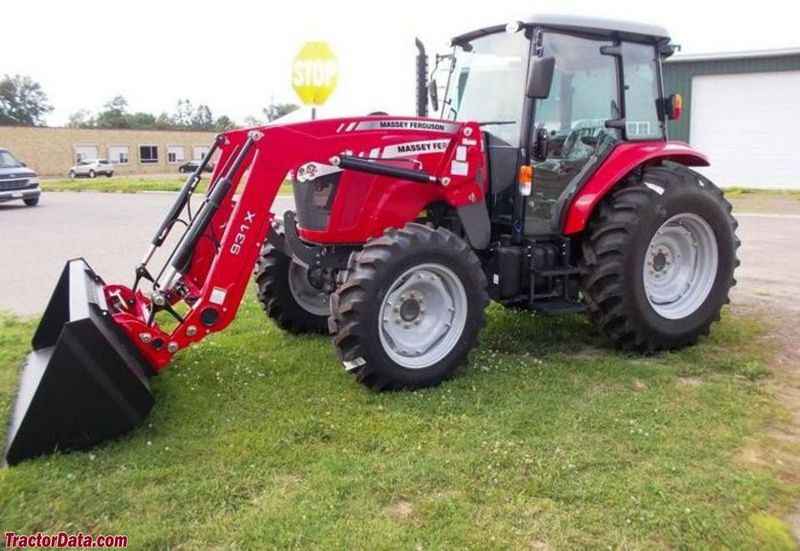

Massey Ferguson 4609M
Browse All Massey Ferguson or Utility Tractor Models
Contents:
Dimensions
| Overall Length | 153.55 in (3900 mm) |
| Wheelbase | 7.5 ft in (2285 mm) |
| Overall Width | 6.73 ft in (2050 mm) |
| Height Over Cab | 8530.19 ft in (2600 m) |
| Height To Top Of Rops | 106.7 in (2710 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | AGCO Power™ |
| Gross Power | 89.8 hp (67 kw) |
| Net Power | 95 hp (70.9 kw) |
| Pto Power | 72 hp (53.7 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 201.4 cu in (3.3 L) |
| Aspiration | Intercooled turbocharged |
Operational
| Def Tank Capacity | 4.2 gal (15.9 L) |
| Fuel Capacity | 30.4 gal (115 L) |
Electrical
| Alternator | 95 amps |
| Battery | 12 V |
Power Take-Off(Pto)
| Pto Speed | 540 rpm |
| Optional | Independent |
| Power Take-Off(Pto) Type | Electro-hydraulic engagement |
| Pto Speeds @ Engine Rpm | 1000 |
Transmission
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 12 |
Weights
| Weight 4wd With Rops | 6680.1 lb (3030 kg) |
| Weight (Shipping, 4wd, Cab, Flange Axle) | 7087.9 lb (3215 kg) |
Hydraulic System
| Hydraulic System Type | Open Center system |
| Pump Type | Gear type single pump |
| Pump Flow Capacity | 17.5 gal/min (66.3 L/min) |
| Number Of Remote Control Valves | 1 or 2 standard |
3-Point Hitch
| Extendable Lower Links | Extendable ball ends |
| Category | Category II |
| Asae Lift Capacity @ 24” | 3307 lb (1500 kg) |
