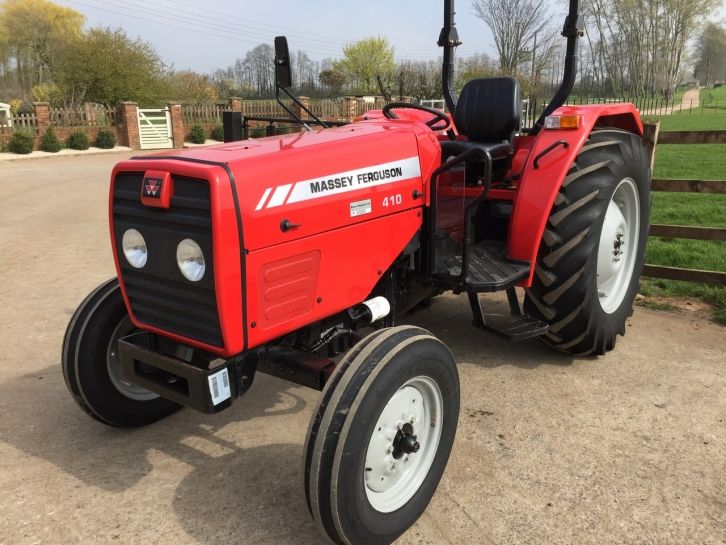

Massey Ferguson MF 410
Browse All Massey Ferguson or Utility Tractor Models
Contents:
Dimensions
| Overall Length | 11.19 in (3410 mm) |
| Wheelbase | 6.76 ft in (2060 mm) |
| Height With Out Rops | 5.94 ft in (1810 mm) |
| Height With Rops | 7.81 ft in (2380 mm) |
Engine
| Engine Make | 2351 |
| Engine Model | 1103C-33 |
| Gross Power | 55 hp (41.1 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 163.8 lb ft (222 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 201.4 cu in (3.3 L) |
| Aspiration | natural |
Operational
| Operating Weight | 5015.6 lb (2275 kg) |
| Fuel Capacity | 12.7 gal (48 L) |
| Hydraulic System Fluid Capacity | 11.1 gal (42 L) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 3946.3 lb (1790 kg) |
| Turning Radius | 10.7 ft in (3250 mm) |
| Tire Size Front - 2wd / 4wd | 6.00-16 6PR |
| Rear Tires Size 2wd/4wd | 13.6-28 6PR |
Transmission
| Transmission Type | partial synchro |
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 2 |
Hydraulic System
| Relief Valve Setting | 2538.2 psi (17500 kPa) |
| Pump Flow Capacity | 13.9 gal/min (52.6 L/min) |
