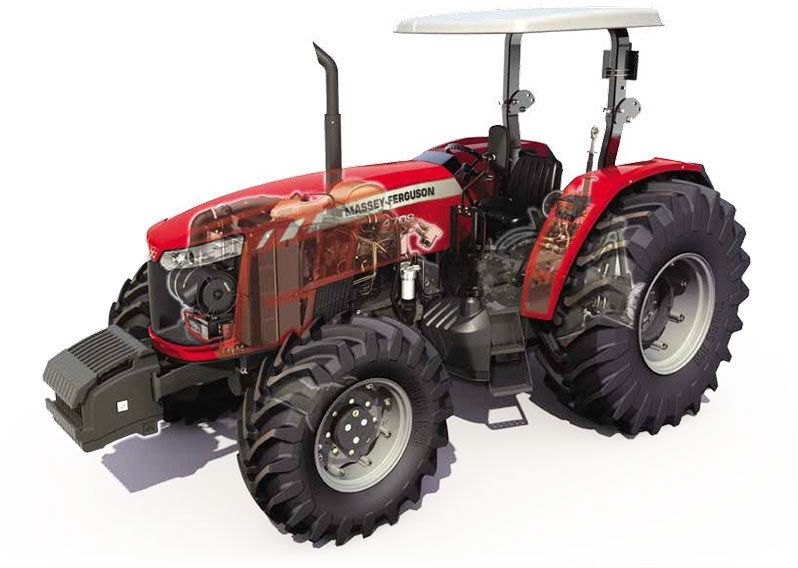

Massey Ferguson MF4708
Browse All Massey Ferguson or Utility Tractor Models
Contents:
Dimensions
| Wheelbase | 7.39 ft in (2250 mm) |
| Overall Width | 5.03 ft in (1533 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | AGCO Power™ |
| Gross Power | 80 hp (59.7 kw) |
| Pto Power | 68 hp (50.8 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 201.4 cu in (3.3 L) |
| Aspiration | Intercooled turbocharged |
Operational
| Def Tank Capacity | 2.6 gal (9.9 L) |
| Fuel Capacity | 27.7 gal (104.9 L) |
Electrical
| Alternator | 80 amps |
| Battery | 12 V |
Power Take-Off(Pto)
| Pto Speed | 540 rpm |
| Optional | Independent |
| Power Take-Off(Pto) Type | Electro-hydraulic shuttle lever |
| Pto Speeds @ Engine Rpm | 1000 |
Transmission
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 8 |
Weights
| Weight 2wd With Rops | 6444.2 lb (2923 kg) |
| Weight 4wd With Rops | 7125.4 lb (3232 kg) |
Hydraulic System
| Hydraulic System Type | Open Center system |
| Pump Type | Gear type single pump |
| Pump Flow Capacity | 17.7 gal/min (67.1 L/min) |
| Number Of Remote Control Valves | 1 or 2 standard |
3-Point Hitch
| Category | Category II |
| Asae Lift Capacity @ 24” | 4850.2 lb (2200 kg) |
