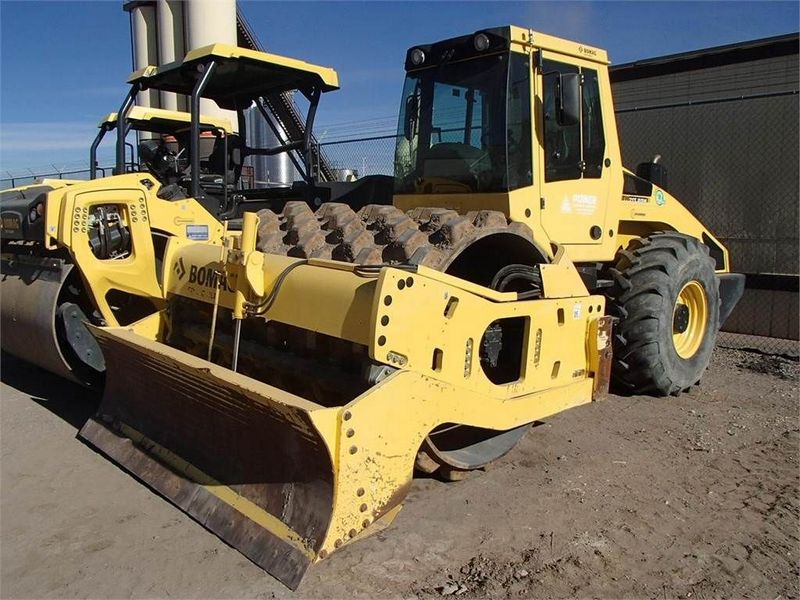

Bomag BW213PDH-40
Contents:
| Overall Length W/O Blade | 19.17 ft in (5840 mm) |
| Height To Top Of Cab | 9.76 ft in (2972 mm) |
| Wheelbase | 9.72 in (2960 mm) |
| Ground Clearance | 19.3 in (490 mm) |
| Drum Diameter | 58.27 in (1480 mm) |
| Pad Surface Area | 21.2 in2 (13677.4 cm2) |
| Vibration Frequency 1 | 30 Hz |
| Vibratory Frequency 2 | 36 Hz |
| Number Of Pads | 150 |
| Drum Width | 83.86 in (2130 mm) |
| Nominal Amplitude - High | 0.07 in (1.64 mm) |
| Centrifugal Force - High | 61822.46 lb (275 kN) |
| Pad Height | 3.94 in (100 mm) |
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | QSB 4.5 |
| Gross Power | 160 hp (119.4 kw) |
| Power Measured @ | 2200 rpm |
| Operating Weight | 27975 lb (12689.3 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Max Speed | 7.5 mph (12 km/h) |
| Tires | 23.1-26/12PR |
| Operating Voltage | 12 V |
