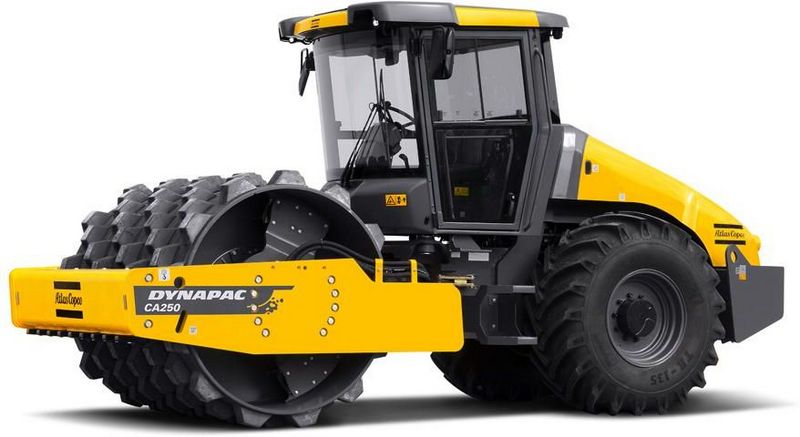

Dynapac CA250PD
Browse All Dynapac or Vibratory Compactor Models
Contents:
Dimensions
| Overall Length W/O Blade | 18.21 ft in (5550 mm) |
| Width Over Tires | 6.99 ft in (2130 mm) |
| Height To Top Of Cab | 9.77 ft in (2977 mm) |
| Wheelbase | _ - (2870 mm) |
| Ground Clearance | 17.84 in (453 mm) |
Drum
| Drum Diameter | 59.97 in (1523 mm) |
| Pad Height | 3.94 in (100 mm) |
| Pad Surface Area | 22.63 in2 (14600 cm2) |
| Vibration Frequency 1 | 33 Hz |
| Nominal Amplitude - Low | 0.04 in (0.8 mm) |
| Centrifugal Force - Low | 32822.11 lb (146 kN) |
| Drum Width | 83.86 in (2130 mm) |
| Nominal Amplitude - High | 0.07 in (1.6 mm) |
| Centrifugal Force - High | 67442.69 lb (300 kN) |
| Number Of Pads | 130 |
Engine
| Engine Make | 2347 |
| Engine Model | QSB 4.5 |
| Gross Power | 110 hp (82 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | water cooled turbo diesel with after cooler |
Operational
| Operating Weight | 26896.4 lb (12200 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Max Speed | 3.2 mph (5 km/h) |
| Tires | 23.1x26 |
