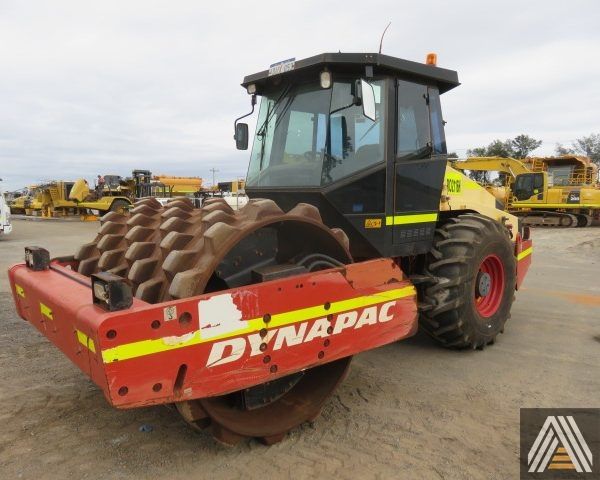

Dynapac CA602PD
Browse All Dynapac or Vibratory Compactor Models
Contents:
Dimensions
| Overall Length W/O Blade | 19.69 ft in (6000 mm) |
| Width Over Tires | 6.99 ft in (2130 mm) |
| Height To Top Of Cab | 9.85 ft in (3000 mm) |
| Wheelbase | 9.82 in (2992 mm) |
| Ground Clearance | 17.72 in (450 mm) |
Drum
| Drum Diameter | 60.75 in (1543 mm) |
| Pad Height | 3.94 in (100 mm) |
| Pad Surface Area | 22.63 in2 (14600 cm2) |
| Vibration Frequency 1 | 29 Hz |
| Vibratory Frequency 2 | 31 Hz |
| Number Of Pads | 130 |
| Centrifugal Force - Low | 51930.87 lb (231 kN) |
| Drum Width | 83.86 in (2130 mm) |
| Nominal Amplitude - High | 0.08 in (1.8 mm) |
| Nominal Amplitude - Low | 0.05 in (1.2 mm) |
| Centrifugal Force - High | 71264.44 lb (317 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSB 6.7 T3 |
| Gross Power | 190 hp (142 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 408.9 cu in (6.7 L) |
| Aspiration | water cooled turbo diesel with after cooler |
Operational
| Operating Weight | 41006 lb (18600 kg) |
| Fuel Capacity | 84.6 gal (320 L) |
| Max Speed | 6.9 mph (11 km/h) |
| Tires | 23.1x26 |
