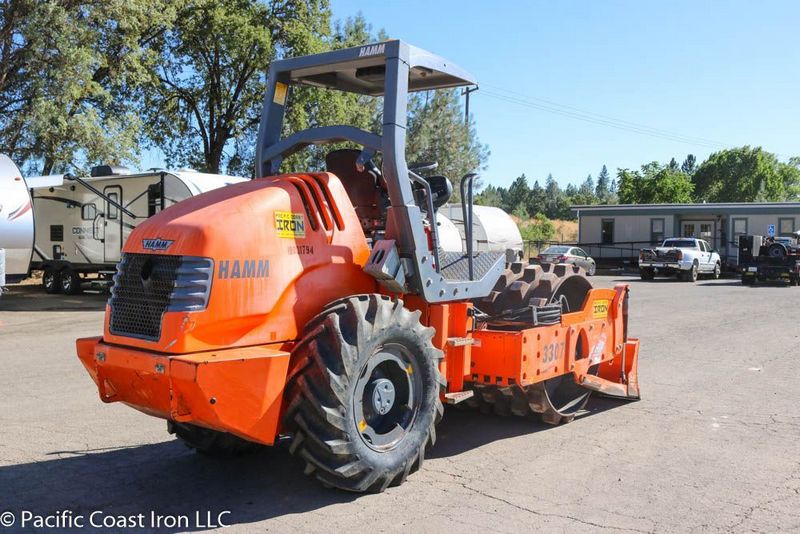

Hamm 3307P
Contents:
| Overall Length W/O Blade | 15.36 ft in (4680 mm) |
| Width Over Tires | 5.88 ft in (1790 mm) |
| Height To Top Of Cab | 9.16 ft in (2790 mm) |
| Nominal Amplitude - Low | 0.03 in (0.6 mm) |
| Centrifugal Force - High | _ - (124 kN) |
| Pad Height | 3.15 in (80 mm) |
| Vibration Frequency 1 | 42 Hz |
| Number Of Pads | 112 |
| Drum Width | 66.15 in (1680 mm) |
| Nominal Amplitude - High | 0.07 in (1.7 mm) |
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | TD2011 |
| Gross Power | 91.2 hp (68 kw) |
| Power Measured @ | 2800 rpm |
| Displacement | 177 cu in (2.9 L) |
| Operating Weight | 15542.6 lb (7050 kg) |
| Fuel Capacity | 46.3 gal (175 L) |
