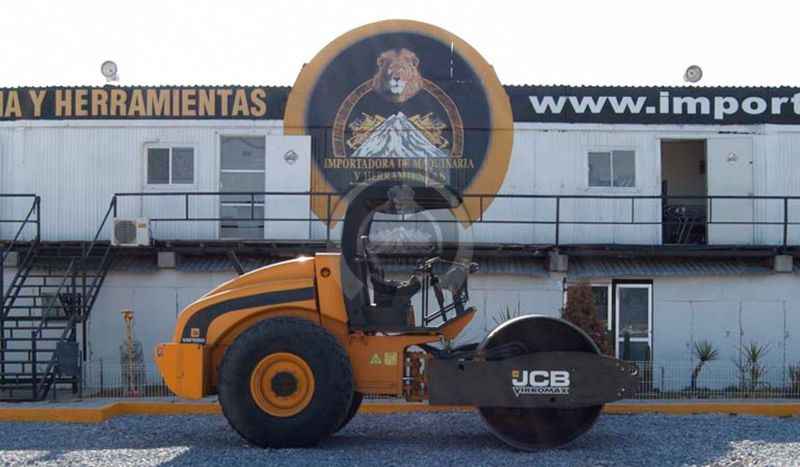

JCB VM115PD
Browse All JCB or Vibratory Compactor Models
Contents:
Dimensions
| Overall Length W/O Blade | 17.87 ft in (5444 mm) |
| Width Over Tires | 7.39 ft in (2250 mm) |
| Height To Top Of Cab | 9.63 ft in (2935 mm) |
| Wheelbase | 9.34 in (2846 mm) |
| Ground Clearance | 17.6 in (447 mm) |
Drum
| Drum Diameter | 59.06 in (1500 mm) |
| Vibratory Frequency 2 | 36 Hz |
| Number Of Pads | 132 |
| Drum Width | 82.68 in (2100 mm) |
| Nominal Amplitude - High | 0.08 in (1.95 mm) |
| Centrifugal Force - High | 63396.12 lb (282 kN) |
| Pad Height | 3.94 in (100 mm) |
| Vibration Frequency 1 | 31 Hz |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2257 |
| Engine Model | JCB444TA |
| Gross Power | 125 hp (93.3 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 268 cu in (4.4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 25573.7 lb (11600 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Cooling System Fluid Capacity | 3.7 gal (14 L) |
| Engine Oil Capacity | 2.9 gal (10.9 L) |
| Hydraulic System Fluid Capacity | 21.2 gal (80 L) |
| Max Speed | 6.6 mph (10.5 km/h) |
| Tires | 23.1-26/12 Tractor Tire Tread |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
