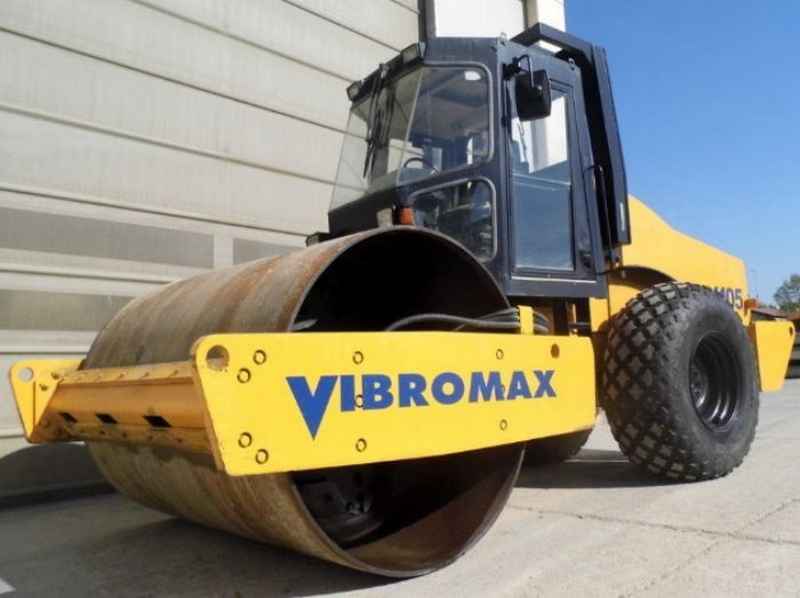

Vibromax 1405PD
Contents:
| Overall Length W/O Blade | 19.33 ft in (5890 mm) |
| Height To Top Of Cab | 10.68 ft in (3255 mm) |
| Wheelbase | 9.73 in (2965 mm) |
| Ground Clearance | 18.12 in (460 mm) |
| Drum Diameter | 55.12 in (1400 mm) |
| Pad Surface Area | 24.1 in2 (15548.36 cm2) |
| Vibration Frequency 1 | 29 Hz |
| Vibratory Frequency 2 | 35 Hz |
| Number Of Pads | 132 |
| Drum Width | 82.68 in (2100 mm) |
| Nominal Amplitude - High | 0.06 in (1.5 mm) |
| Centrifugal Force - High | 38667.14 lb (172 kN) |
| Pad Height | 3.94 in (100 mm) |
| Engine Make | 2347 |
| Engine Model | 6BT5.9C |
| Gross Power | 185.1 hp (138 kw) |
| Displacement | 359 cu in (5.9 L) |
| Aspiration | turbocharged |
| Operating Weight | 32187.5 lb (14600 kg) |
| Fuel Capacity | 104.9 gal (397 L) |
| Max Speed | 7.1 mph (11.4 km/h) |
| Tires | 23.1x20-26 8PR |
