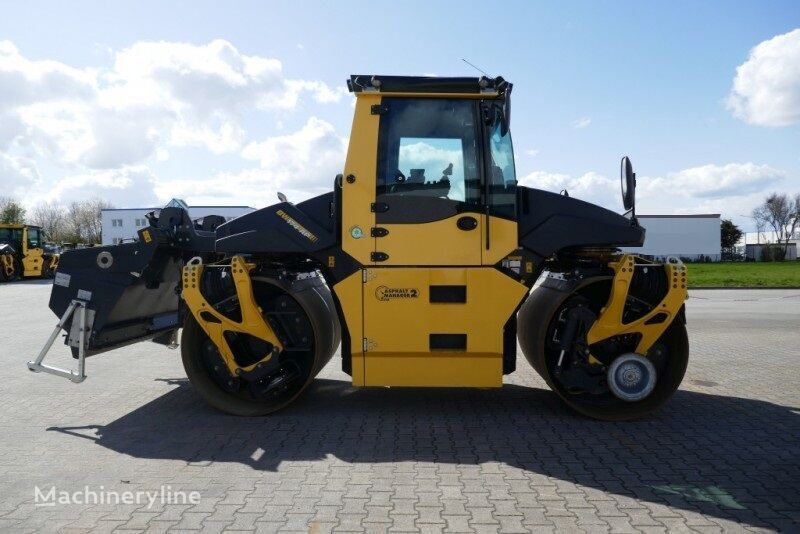

Bomag BW 174 APO-4F
Browse All Bomag or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 174.02 in (4420 mm) |
| Overall Width | 6 ft in (1826 mm) |
| Height To Top Of Cab | 9.85 ft in (3000 mm) |
| Wheelbase | 125.99 in (3200 mm) |
| Ground Clearance | 11.34 in (288 mm) |
| Drum Diameter - Front | 4.01 ft in (1220 mm) |
| Drum Diameter - Rear | 4.01 ft in (1220 mm) |
| Track Radius Inner | 116.15 in (2950 mm) |
Steering System
| System | 2-p pivoted |
Engine
| Fuel | Diesel |
| Number Of Cylinders | 4 |
| Cooling Method | Liquid |
| Engine Make | Deutz |
| Engine Model | TCD 3.6 L4 |
| Gross Power | 99.8 hp (74.4 kw) |
| Power Measured @ | 2000 rpm |
Operational
| Operating Weight | 20944 lb (9500 kg) |
| Fuel Capacity | 47.6 gal (180 L) |
| Water Spray Tank Fluid Capacity | 179.7 gal (680 L) |
| Max Speed | 6.6 mph (10.5 km/h) |
Drum
| Vibration Frequency 1 | 45 Hz |
| Nominal Amplitude - High | 0.1 in (0.5 mm) |
| Vibration Frequency 2 | 46 Hz |
| Centrifugal Force - High | 17984.8 lb (80 kN) |
Weights
| Front Axle Weight | 9920.9 lb (4500 kg) |
| Rear Axle Weight | 11023.2 lb (5000 kg) |
| Static Linear Load, Front | 268 lb/in (47.9 kg/cm) |
| Static Linear Load, Rear | 298 lb/in (53.3 kg/cm) |
| Grossweight | 24471.4 lb (11100 kg) |
Brakes
| Parking Brake | Mechanichal |
| Service Brake | Hydrostatic |
