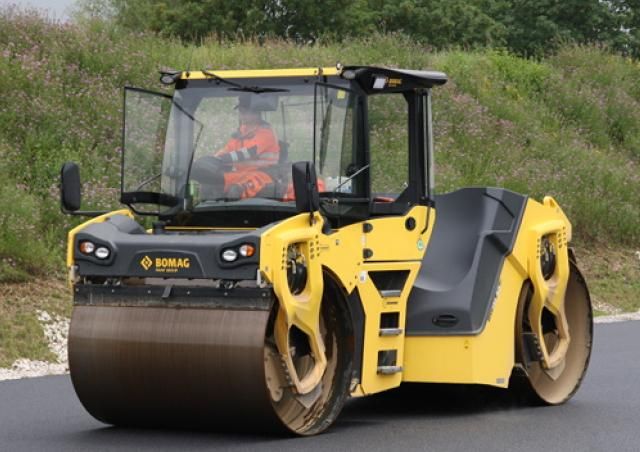

Bomag BW 206 ADO-5
Browse All Bomag or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 208.7 in (5300.98 mm) |
| Overall Width | 7.15 ft in (2176.79 mm) |
| Height To Top Of Cab | 10.68 ft in (3253.74 mm) |
| Wheelbase | 153.5 in (3898.9 mm) |
| Ground Clearance | 9.81 in (248.92 mm) |
Steering System
| System | Oscillatoty Articulation |
Engine
| Number Of Cylinders | 4 |
| Cooling Method | Water |
| Engine Make | Deutz |
| Engine Model | TCD 4.1 L04 |
| Gross Power | 140.9 hp (105 kw) |
| Power Measured @ | 2300 rpm |
Operational
| Operating Weight | 29542 lb (13400.1 kg) |
| Fuel Capacity | 43.6 gal (165.1 L) |
| Hydraulic System Fluid Capacity | 256.2 gal (969.9 L) |
| Max Speed | 7.5 mph (12.1 km/h) |
| Operating Voltage | 12 V |
Drum
| Drum Width | 84.1 in (2136.2 mm) |
| Drum Diameter | 55.1 in (1399.6 mm) |
| Vibration Frequency 1 | 40 Hz |
| Nominal Amplitude - High | 0.1 in (0.5 mm) |
| Vibration Frequency 2 | 50 Hz |
| Centrifugal Force - High | 29000 lb (129 kN) |
Weights
| Front Axle Weight | 15332 lb (6954.5 kg) |
| Rear Axle Weight | 14220 lb (6450.1 kg) |
| Static Linear Load, Front | 182.3 lb/in (32.6 kg/cm) |
| Static Linear Load, Rear | 169.2 lb/in (30.3 kg/cm) |
| Grossweight | 34613 lb (15700.2 kg) |
Brakes
| Parking Brake | Multi disc |
| Service Brake | Hydrostatic |
