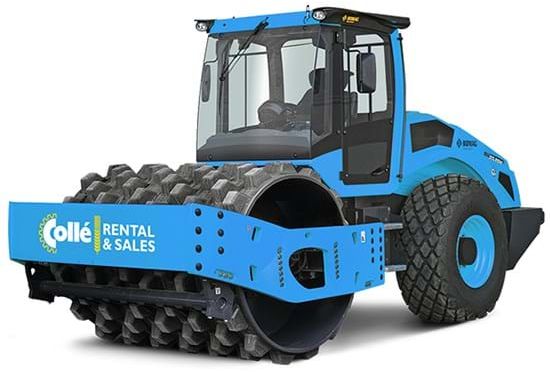

Bomag BW 213 PDH-5
Contents:
| Overall Length | 231.1 in (5869.94 mm) |
| Overall Width | 7 ft in (2131.07 mm) |
| Height To Top Of Cab | 9.81 ft in (2989.58 mm) |
| Wheelbase | 89.4 in (2270.77 mm) |
| Ground Clearance | 19.3 in (490.22 mm) |
| Steering Method | Hydrostatic |
| System | Oscillatory Articulation |
| Oscillating Angle | 12 degrees |
| Steering Angle | 35 degrees |
| Fuel | Diesel |
| Emissions Level | Stage 4 |
| Number Of Cylinders | 4 |
| Cooling Method | Liquid |
| Engine Make | Deutz |
| Engine Model | TCD 4.1 |
| Gross Power | 154.2 hp (115 kw) |
| Power Measured @ | 2000 rpm |
| Aspiration | Tier 4 |
| Operating Weight | 30490 lb (13830.1 kg) |
| Fuel Capacity | 66 gal (249.9 L) |
| Max Speed | 7.5 mph (12.1 km/h) |
| Tires *If Applicable | 23.1-26 12PR |
| Operating Voltage | 12 V |
| Drum Width | 83.9 in (2131.1 mm) |
| Drum Diameter | 59.1 in (1501.2 mm) |
| Number Of Pads | 150 |
| Vibration Frequency 1 | 30 Hz |
| Pad Height | 3.9 in (99.1 mm) |
| Pad Surface Area | 21.9 in2 (141.3 cm2) |
| Nominal Amplitude - High | 0.1 in (1.8 mm) |
| Vibration Frequency 2 | 34 Hz |
| Centrifugal Force - High | 64071 lb (285.1 kN) |
| Grossweight | 32496 lb (14740 kg) |
| Loaded Weight | 19114 lb (8670 kg) |
| Parking Brake | Hydromec |
| Service Brake | Hydrostatic |
