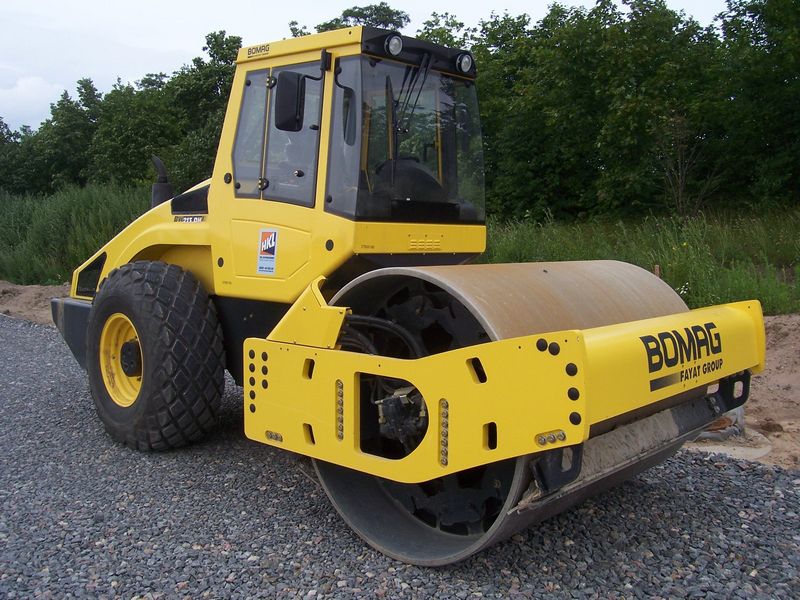

Bomag BW213D2A
Contents:
| Overall Length | 18.84 in (5740 mm) |
| Overall Width | 6.89 ft in (2100 mm) |
| Height To Top Of Cab | 10.6 ft in (3230 mm) |
| Wheelbase | 10.18 in (3100 mm) |
| Ground Clearance | 15.75 in (400 mm) |
| Drum Diameter - Front | 4.93 ft in (1500 mm) |
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | BF4L913 |
| Gross Power | 114 hp (85 kw) |
| Net Power | 104.6 hp (78 kw) |
| Power Measured @ | 2500 rpm |
| Aspiration | natural |
| Operating Weight | 25593.5 lb (11609 kg) |
| Fuel Capacity | 51.6 gal (195 L) |
| Max Speed | 6.3 mph (10 km/h) |
| Tires *If Applicable | 23.1/18-268PR |
| Operating Voltage | 12 V |
| Drum Diameter | 59.1 in (1500 mm) |
| Static Linear Load | 169.7 lb/in (30.3 kg/cm) |
| Vibration Frequency 1 | 31 Hz |
| Nominal Amplitude - High | 0.1 in (0.9 mm) |
| Vibration Frequency 2 | 40 Hz |
| Nominal Amplitude - Low | 0.1 in (1.7 mm) |
| Centrifugal Force - High | 43163.4 lb (192 kN) |
| Centrifugal Force - Low | 55078.2 lb (245 kN) |
